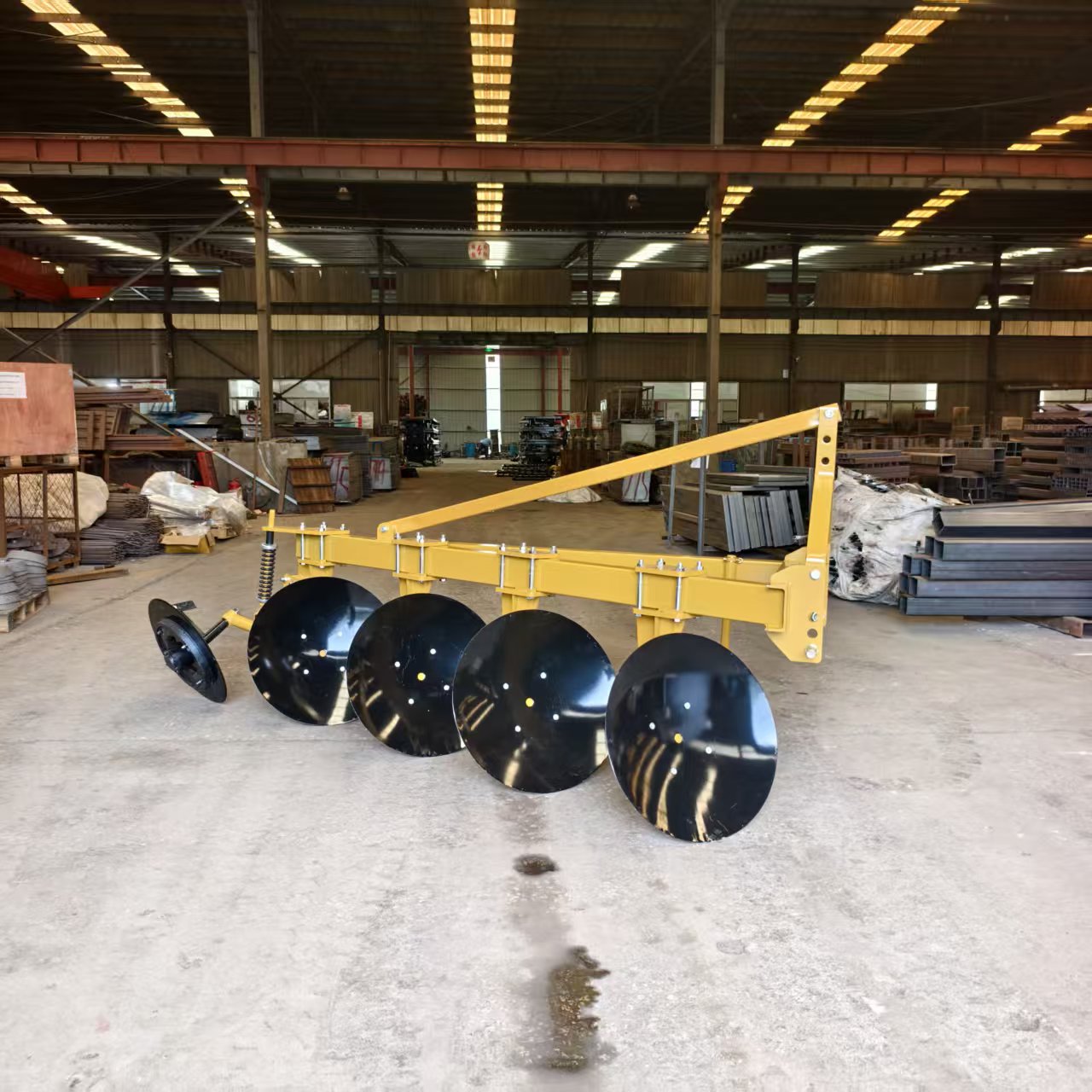

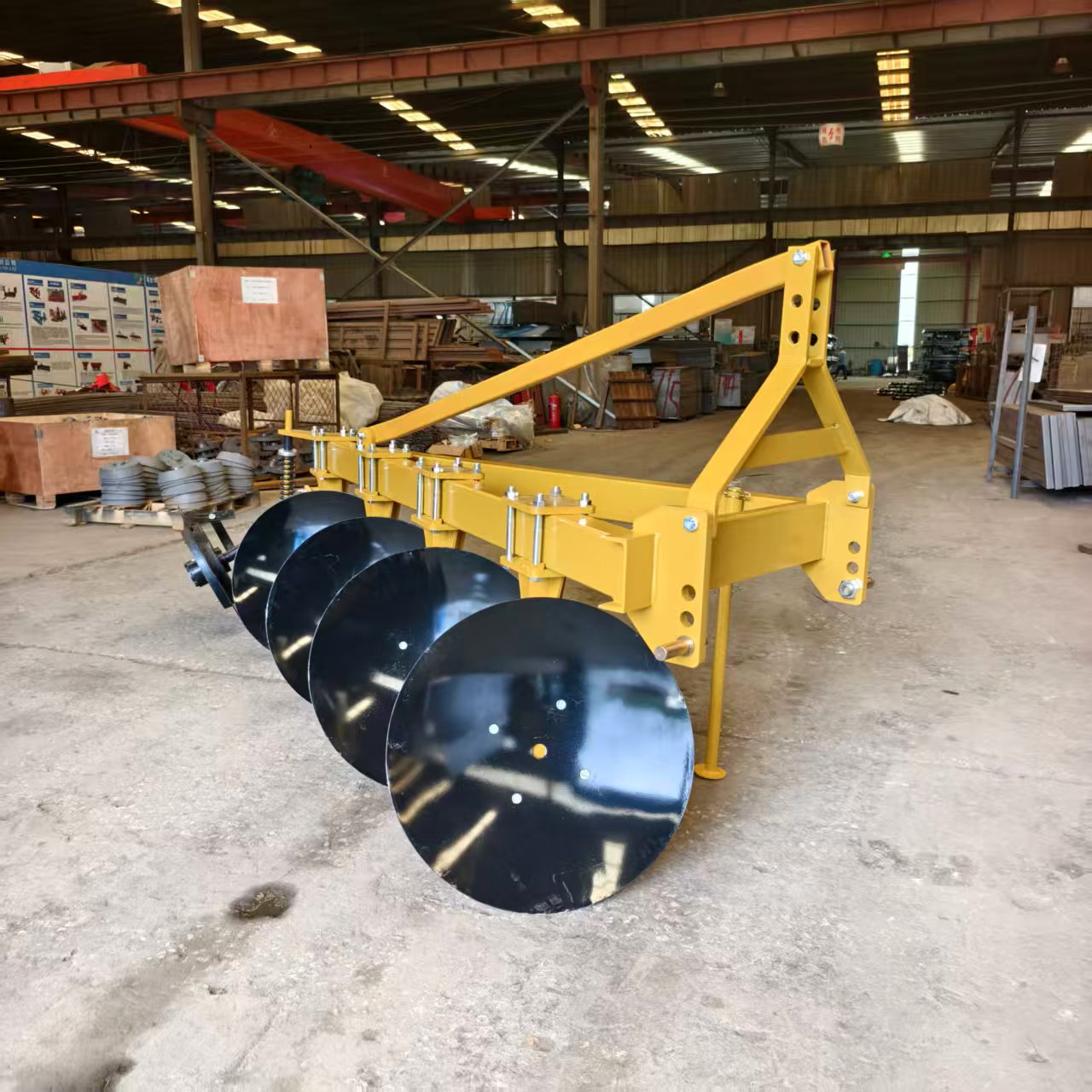

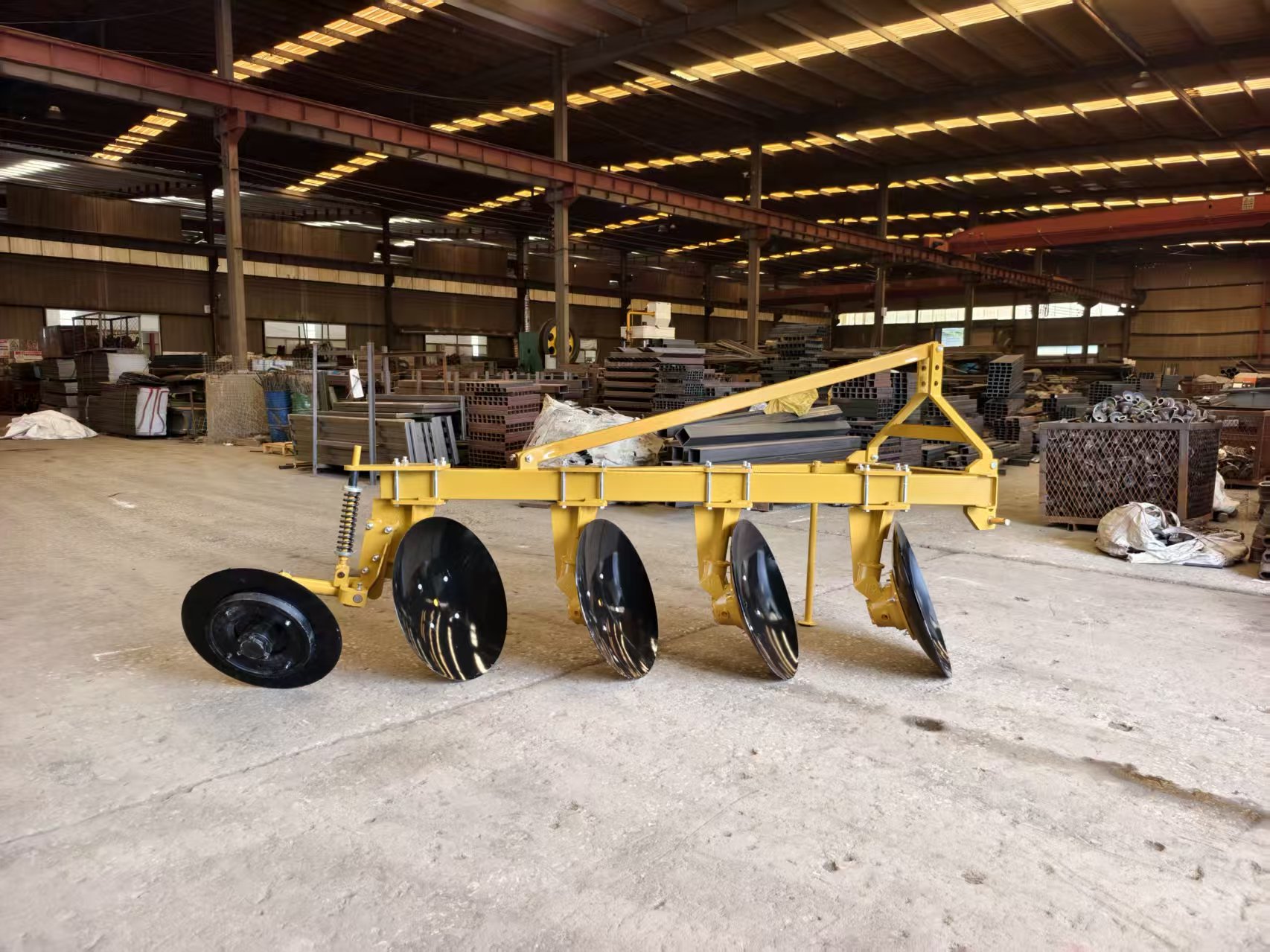

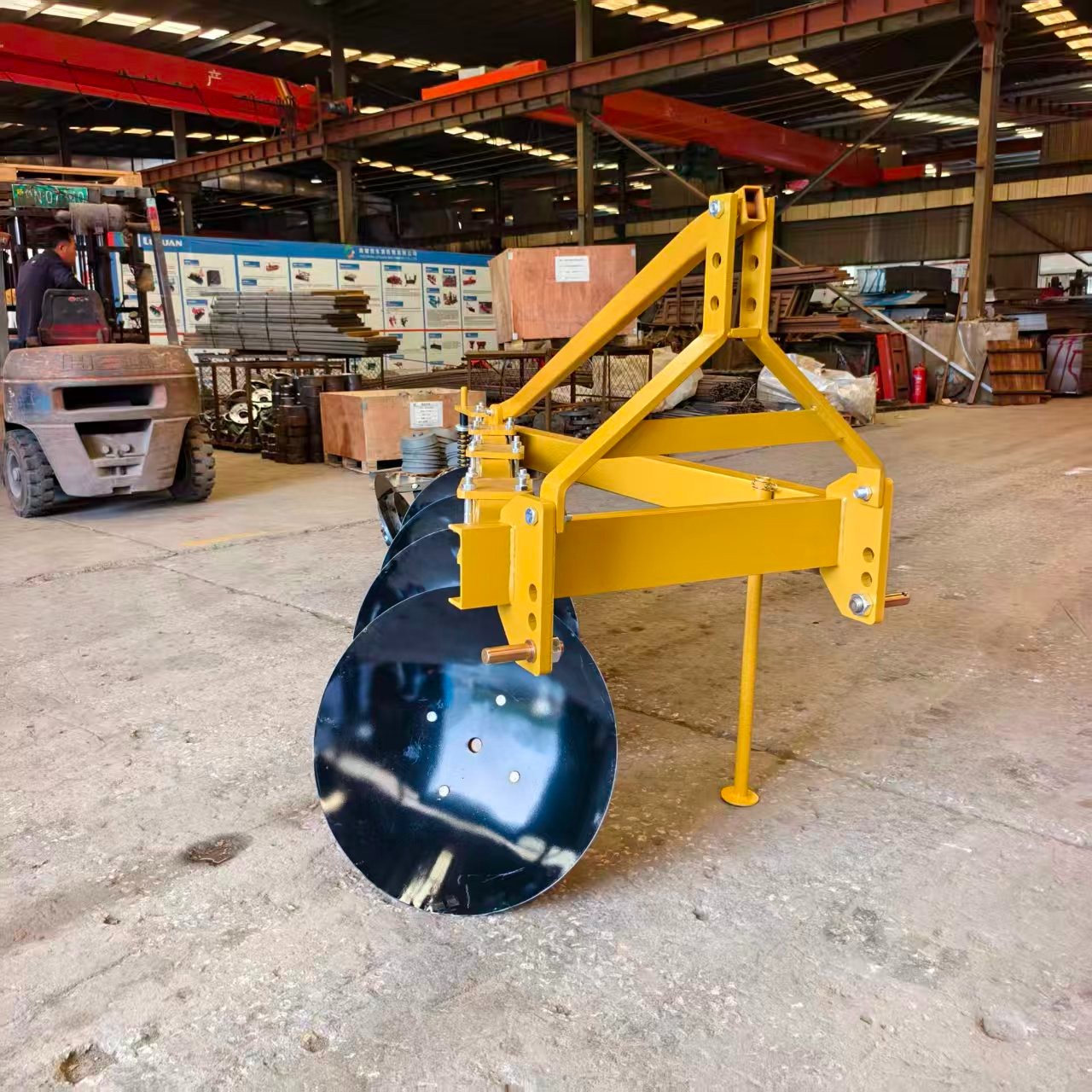

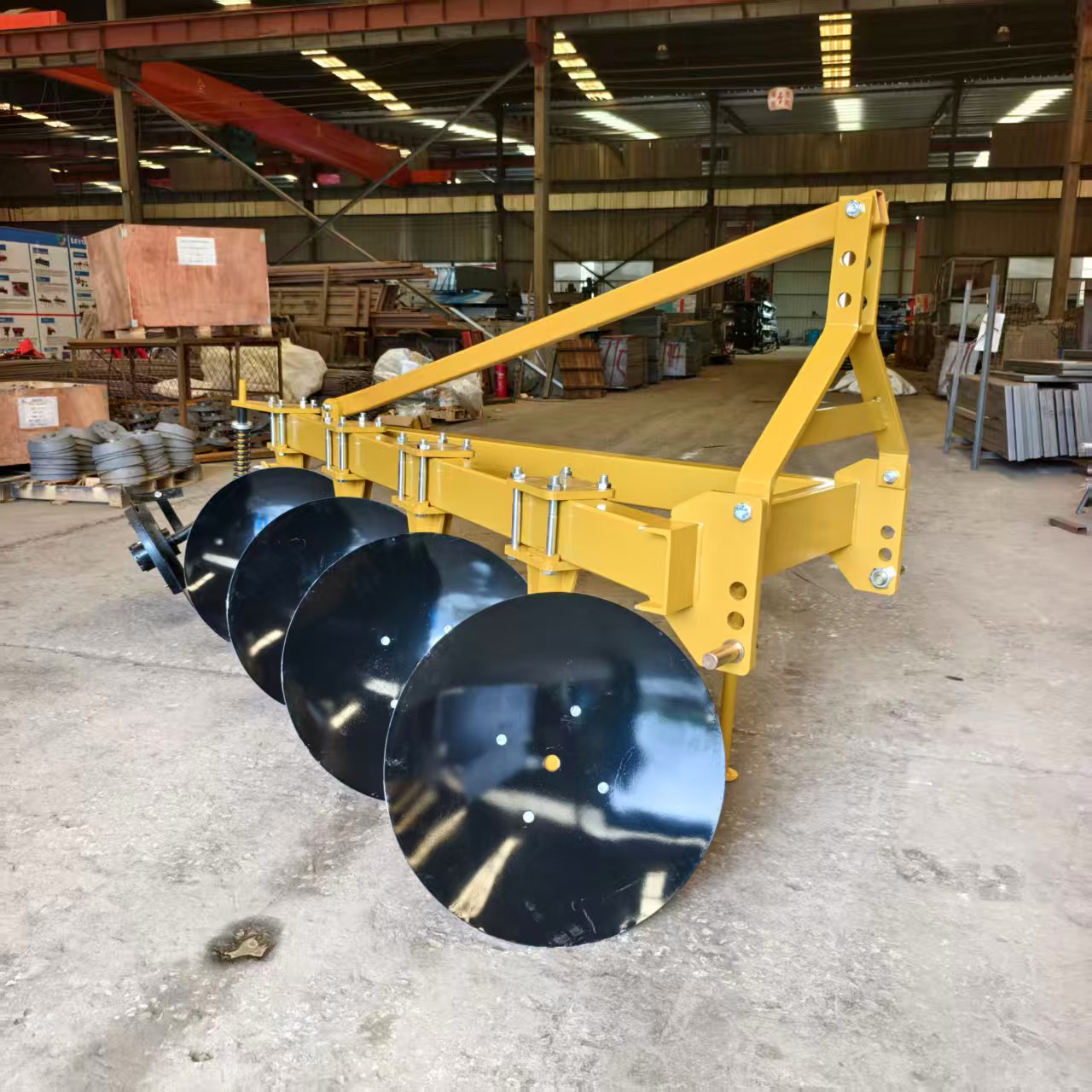

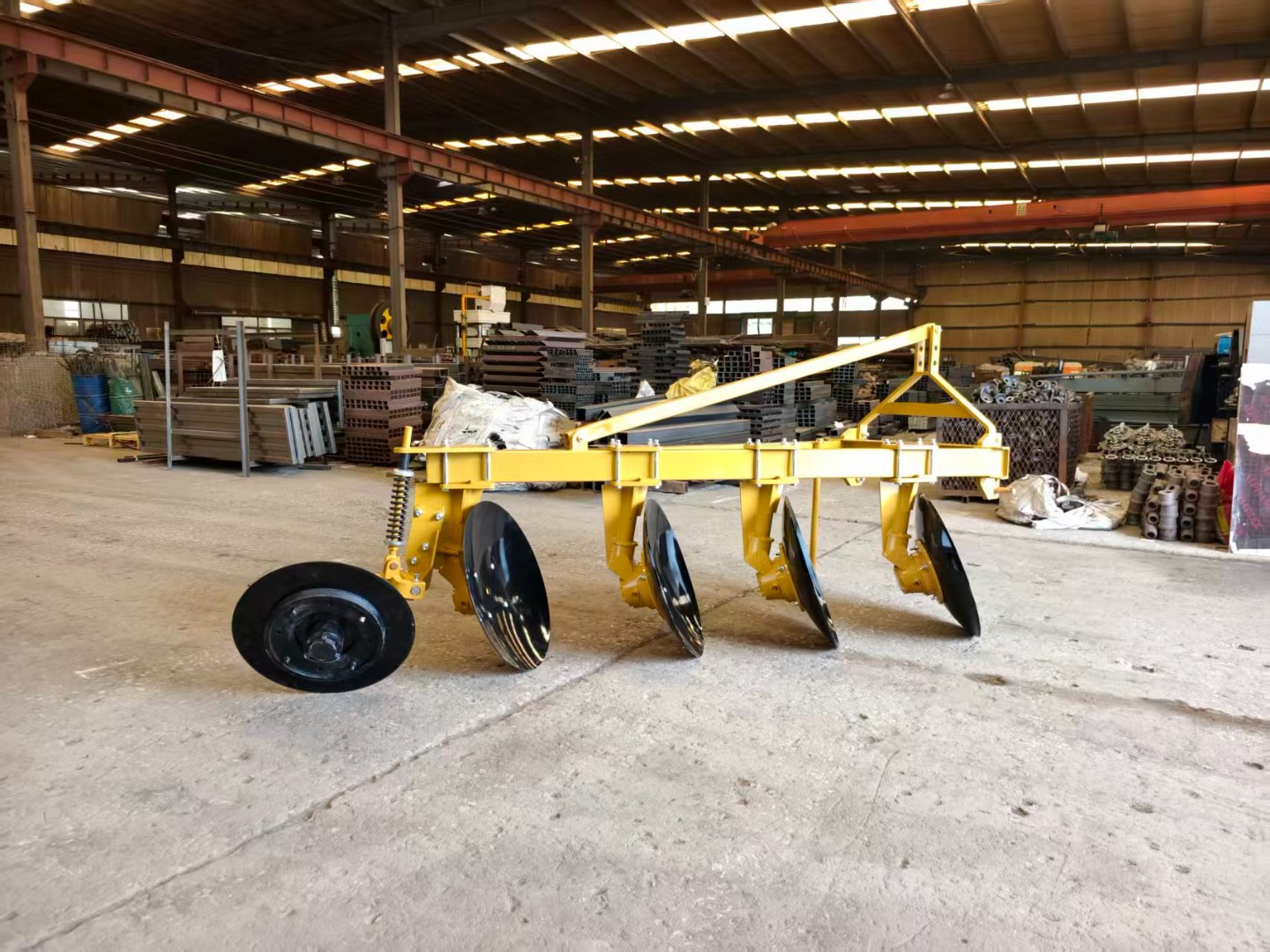

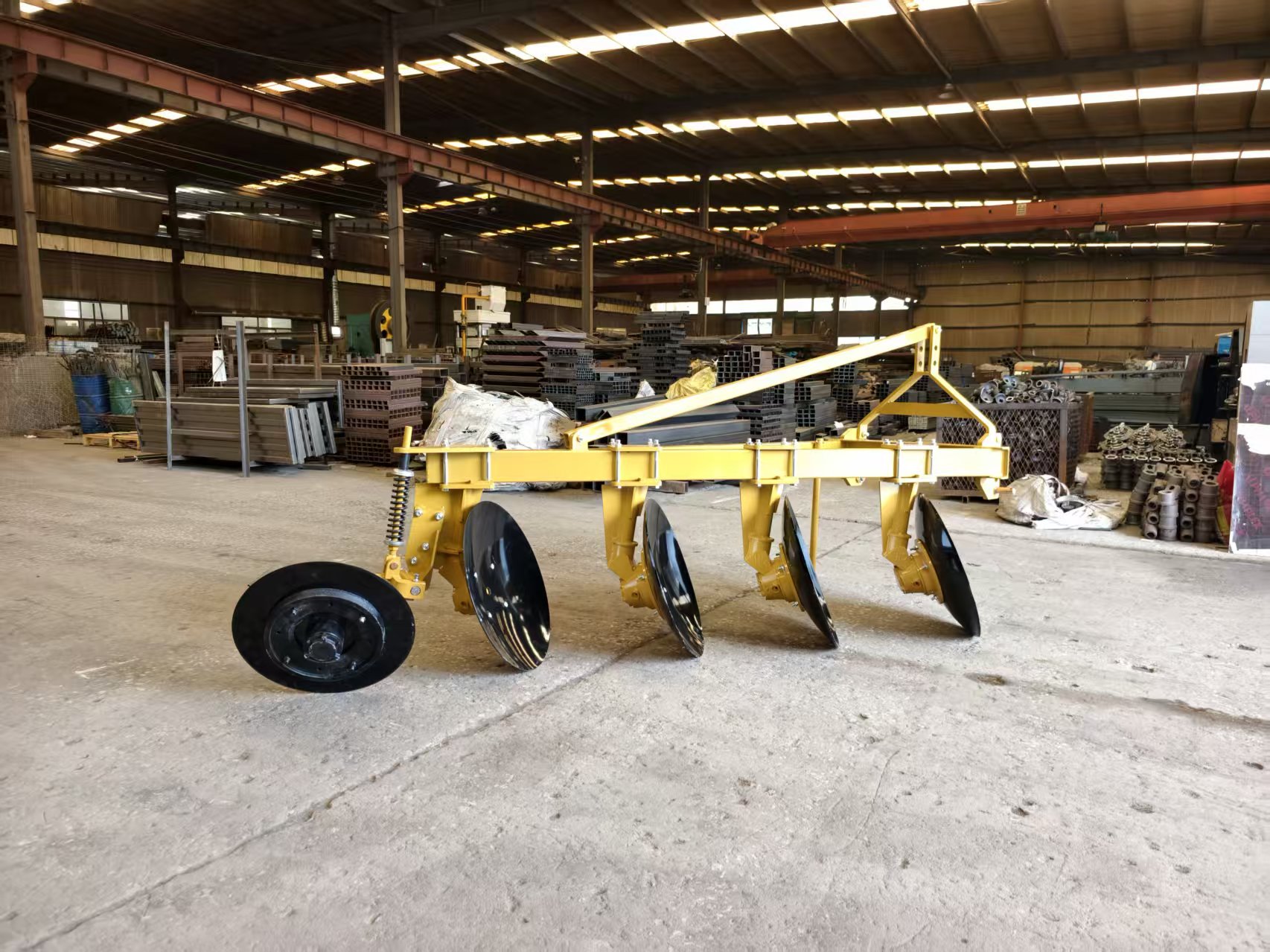

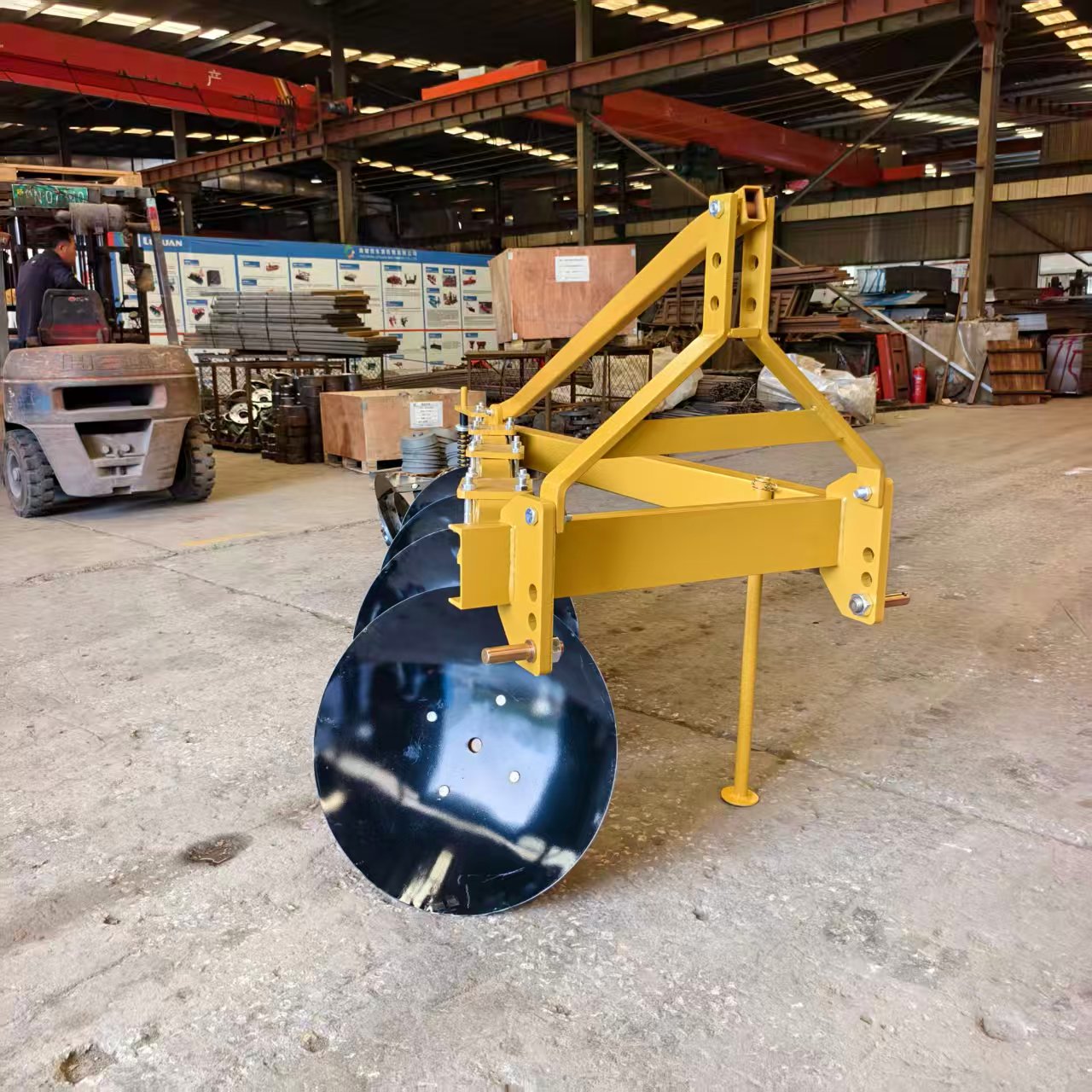

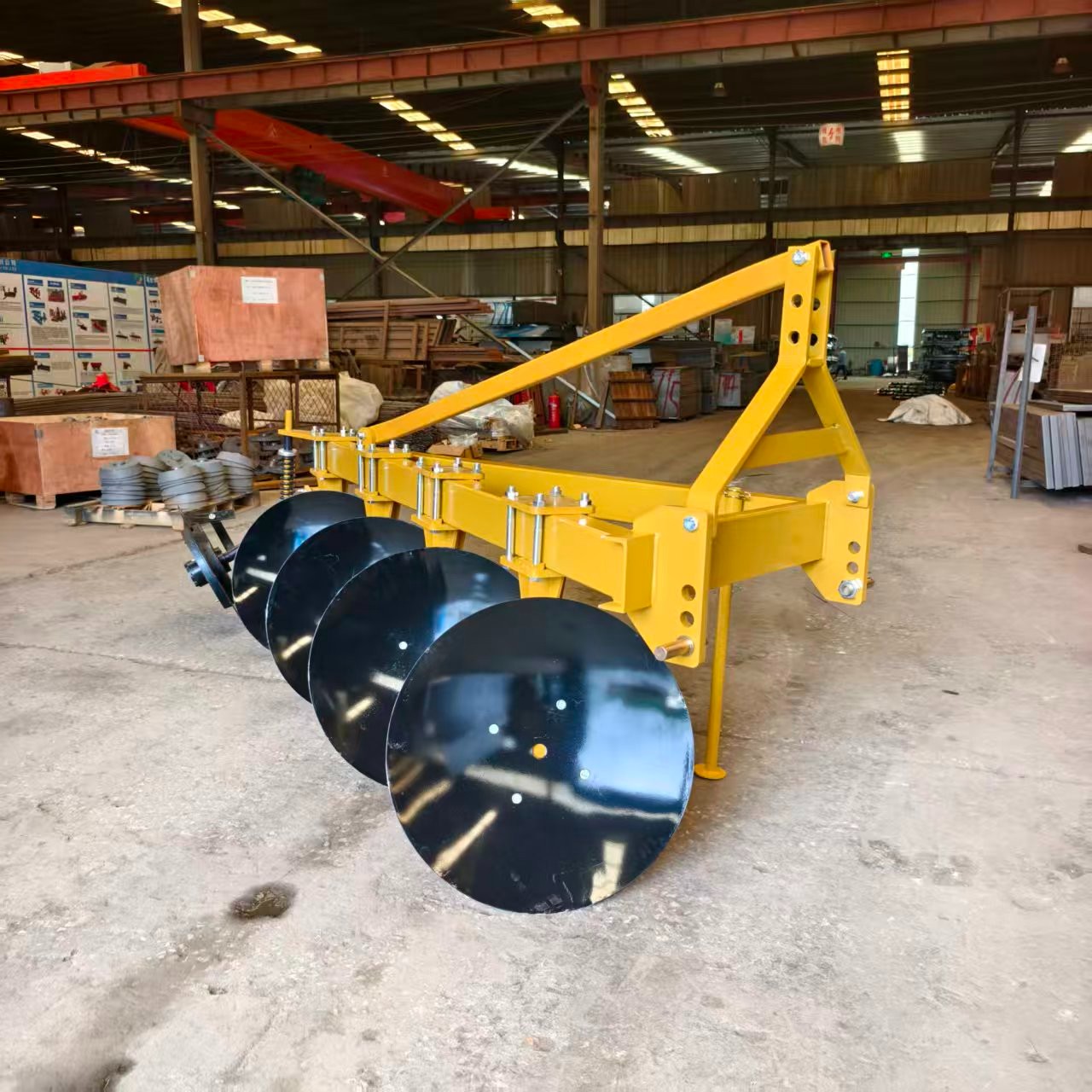

Disc Plow 1LY-425 – Heavy-Duty 4-Disc Farm Tractor Implement for Efficient Soil Tillage
Product Name: 1LY-425 Heavy-Duty Hydraulic Disc Plow
Suitable For: Primary tillage in hard, dry, or stony soils; breaking fallow land; stubble cleaning.
Product Overview
The 1LY-425 Disc Plow is a robust and efficient agricultural implement designed for primary tillage operations. Unlike moldboard plows that use a solid share, this disc plow utilizes concave discs that rotate as they cut through the soil. This design is particularly advantageous in tough field conditions, such as hard and dry soils, or in areas with roots and stones, as the disc's rolling action reduces draft and absorbs shocks, minimizing the risk of breakage.
Engineered for tractors in the 80 to 110 horsepower range, the 1LY-425 strikes an excellent balance between power requirement and working width, making it an ideal tool for medium to large-scale farms seeking deep tillage with minimal maintenance.
Key Technical Specifications
| Feature | Specification |
|---|---|
| Model | 1LY-425 |
| Structure Type | Category II Three-Point Linkage (Hydraulic Control) |
| Working Width (耕幅) | 1000 mm (1.0 Meter / 39.4 Inches) |
| Working Depth (耕深) | 250 – 300 mm (10 – 12 Inches) |
| Disc Diameter (犁片直径) | 660 mm (26 Inches) |
| Number of Discs (犁片数量) | 4 Discs |
| Machine Weight (重量) | 490 kg (1080 lbs) |
| Required Tractor Power | 80 – 110 hp |
| Mounting Type | Standard 3-Point Hitch (Cat II) |
Detailed Features and Benefits
1. Category II Three-Point Linkage
The 1LY-425 is equipped with a standard Category II three-point hitch, ensuring compatibility with a wide range of modern agricultural tractors. This linkage system provides easy attachment and detachment, allowing the operator to switch between implements quickly. The hydraulic system integrated into the plow allows for precise control over the entry and exit of the discs, as well as adjusting the working depth on-the-go from the tractor cabin.
2. Optimized Working Dimensions
With a working width of 1000mm and a depth capability of 250-300mm, this plow is designed for deep primary tillage.
-
The 1-meter span ensures high productivity, allowing the farmer to cover ground efficiently without requiring an excessively large tractor.
-
The 250-300mm depth is crucial for breaking up hardpan layers, improving soil aeration, and enhancing water infiltration. This deep tillage prepares an excellent seedbed for subsequent crops
3. Large Diameter Discs (660mm / 26 Inches)
The plow features four high-quality concave discs, each measuring 660mm in diameter.
-
Durability: Constructed from wear-resistant boron steel or heat-treated alloy steel, these discs are designed to withstand abrasive soils and impact with stones or roots.
-
Scouring Action: The large diameter and curvature ensure that the disc maintains a good rolling motion. This "scouring" action means the disc self-cleans as it turns, preventing sticky soil from building up on the surface, which is essential for consistent plowing in clay or loamy conditions.
-
Penetration: The weight and angle of the discs allow them to cut deep into the ground, gripping the soil effectively even in dry conditions where other plows might ride to the surface.
4. Hydraulic Angle Adjustment
A key feature of the 1LY-425 is its hydraulic system, which allows the operator to adjust the angle of attack of the disc gangs. By changing the angle, the farmer can control how aggressively the soil is turned. A sharper angle provides better inversion and coverage of residue, while a shallower angle is used for shallower working or in extremely hard ground. This hydraulic control saves significant time compared to manual adjustment systems.
5. Robust Construction (Weight: 490 kg)
Weighing in at 490 kg, the 1LY-425 is a heavy-duty implement. This substantial weight is critical for ensuring that the discs penetrate the soil effectively without requiring excessive additional hydraulic downforce from the tractor. The heavy-duty frame, usually constructed from high-strength steel sections, ensures longevity and resistance to twisting or bending, even under the stress of deep plowing in uneven terrain.
Application and Soil Suitability
The 1LY-425 is specifically designed for conditions that are problematic for standard moldboard plows:
-
Hard and Dry Soils: The disc's rolling cut is more effective at penetrating crusted surfaces.
-
Stony Ground: The discs can roll over or deflect around stones rather than catching and breaking like a bolt-on share.
-
Rooty or Bushy Land: Ideal for breaking new ground or clearing stubble where roots might clog a standard plow.
-
Tough Stubble: Excellent for chopping and incorporating heavy crop residue like maize or sunflower stalks.
Conclusion
The 1LY-425 Disc Plow is a reliable, durable, and efficient tillage solution for modern farmers. By combining a 1000mm working width with 660mm discs and a robust 490kg frame, it is perfectly matched to 80-110hp tractors. Its ability to perform under tough conditions, coupled with the convenience of hydraulic adjustments, makes it a valuable asset for any farming operation focused on deep soil management and high productivity. Whether you are preparing a seedbed or breaking new land, the 1LY-425 delivers consistent performance year after year.
