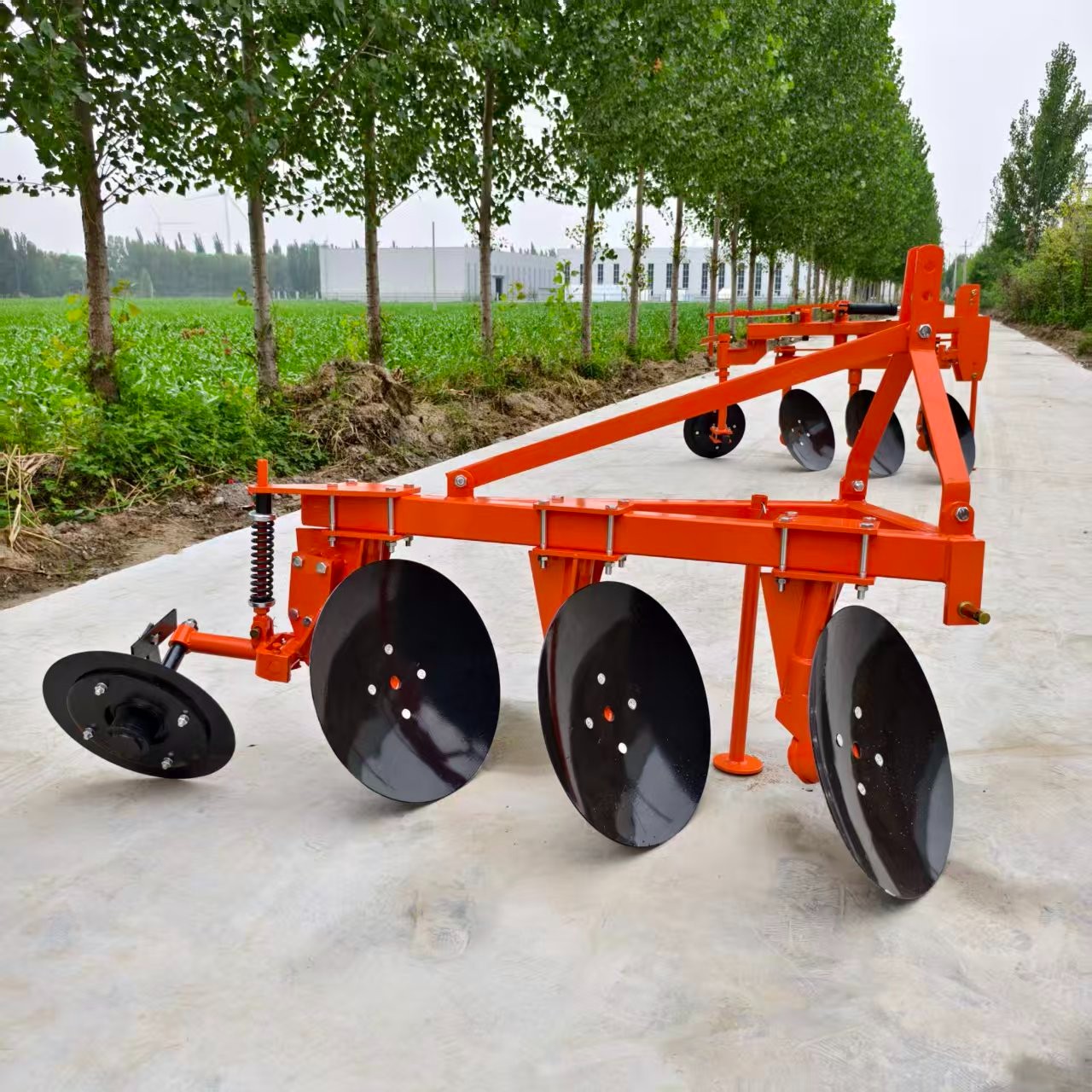

Disc Plow 1LYQ-320 – Heavy-Duty Farm Disc Plow for Tractors
Product Name: 1LYQ-320 Light-Duty Hydraulic Disc Plow
Suitable For: Primary and secondary tillage in small to medium fields; orchard and vineyard cultivation; garden farming; dry land and stubble cleaning.
Product Overview
The 1LYQ-320 Disc Plow is a compact, lightweight, and highly maneuverable agricultural implement designed specifically for small-scale farming operations and specialty crop environments. While larger disc plows are built for broad-acre farming, the 1LYQ-320 is tailored for tractors in the 25 to 40 horsepower range, making it the perfect companion for smallholder farmers, vineyard managers, orchardists, and greenhouse operators.
This implement utilizes three concave discs that rotate as they move through the soil. This rolling action is superior to traditional moldboard plows in many conditions, as it reduces draft requirements, allows the implement to slide over roots and stones, and ensures excellent soil penetration even in relatively dry conditions. With a working width of 600mm and a depth capacity of 200mm, this plow offers the perfect balance of efficiency and precision for smaller tractors.
Key Technical Specifications
| Feature | Specification |
|---|---|
| Model | 1LYQ-320 |
| Structure Type | Category I Three-Point Linkage |
| Working Width (耕幅) | 600 mm (0.6 Meter / 23.6 Inches) |
| Working Depth (耕深) | 200 mm (8 Inches) |
| Disc Diameter (犁片直径) | 510 mm (20 Inches) |
| Number of Discs (犁片数量) | 3 Discs |
| Machine Weight (重量) | 190 kg (419 lbs) |
| Required Tractor Power | 25 – 40 hp |
| Mounting Type | Standard 3-Point Hitch (Category I) |
Detailed Features and Benefits

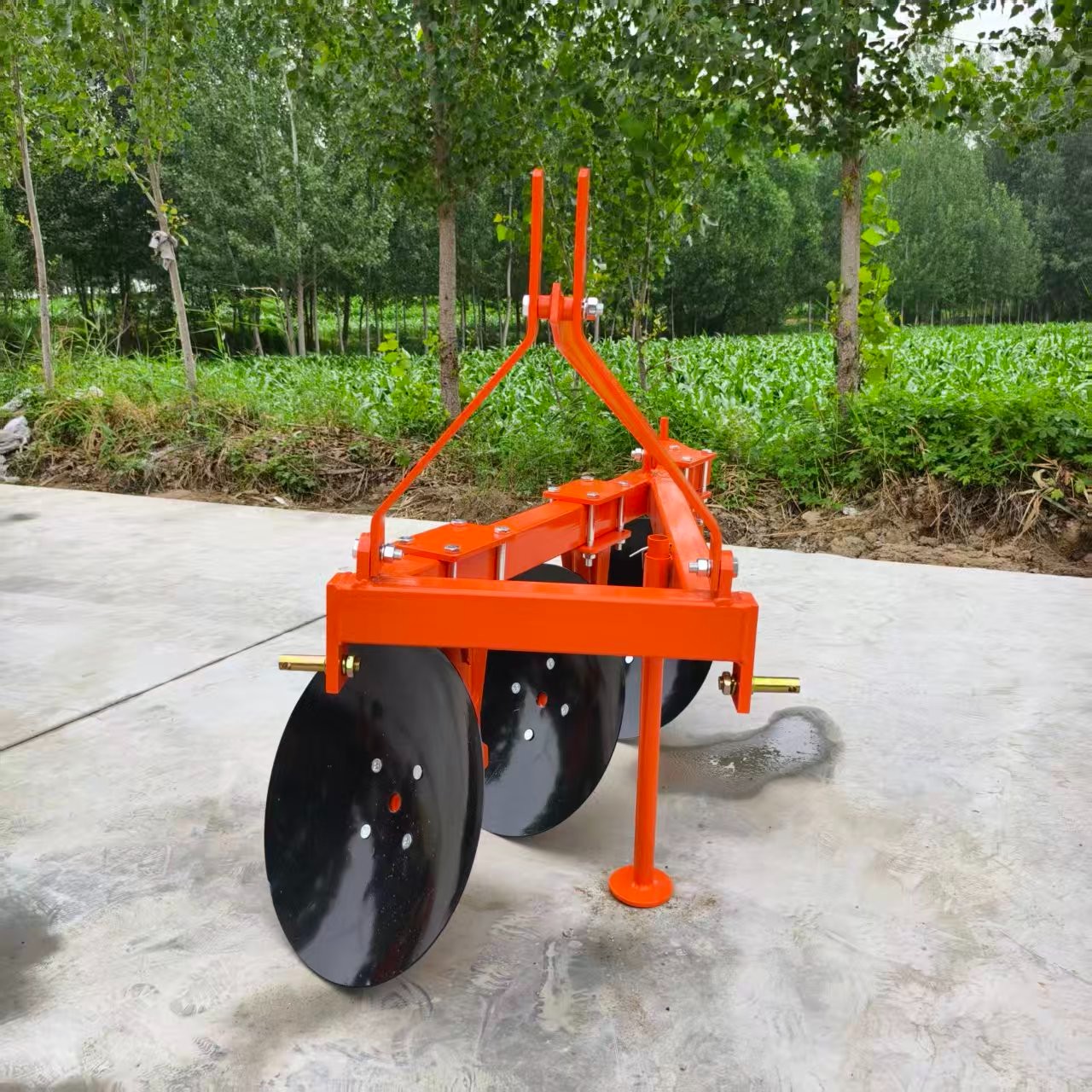

1. Category I Three-Point Linkage
The 1LYQ-320 is equipped with a standard Category I three-point hitch, which is the global standard for compact and utility tractors in the 20-50 horsepower class. This ensures seamless compatibility with popular tractor models from manufacturers such as John Deere, Kubota, Mahindra, Massey Ferguson, and various Chinese tractor brands. The three-point system allows for quick attachment and detachment, while the integrated hydraulic control enables the operator to raise, lower, and adjust the plowing depth directly from the tractor seat.
2. Compact Working Dimensions
With a working width of 600mm and a depth of 200mm, this plow is optimized for smaller fields and precise work.
-
The 600mm span is wide enough to cover ground at a reasonable pace for small to medium plots, yet narrow enough to maneuver through tight spaces such as vineyard rows or orchard alleys.
-
The 200mm working depth (approximately 8 inches) is ideal for primary tillage in most vegetable crops, flower farming, and garden preparation. It is deep enough to break up surface compaction and incorporate crop residue, but not so deep as to require excessive tractor power.
3. 510mm Diameter Discs

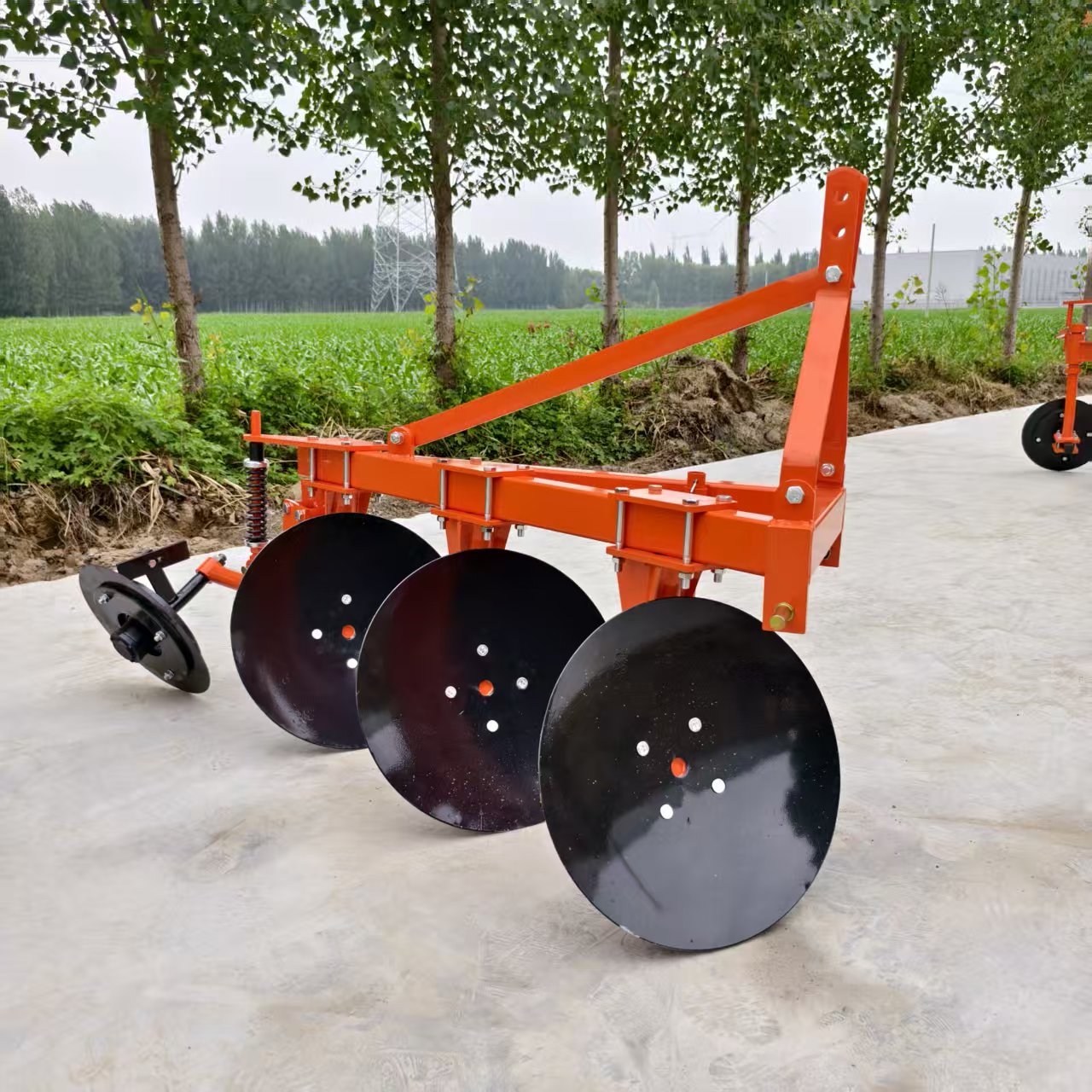

The plow features three concave discs, each measuring 510mm (20 inches) in diameter.
-
Material Quality: The discs are manufactured from high-strength, wear-resistant steel, often heat-treated to maintain a sharp edge and resist abrasion from sandy or rocky soils.
-
Self-Sharpening Action: As the discs rotate during operation, they experience even wear, which helps maintain a consistent cutting angle over time. This self-sharpening characteristic extends the operational life of the discs and ensures consistent plowing quality season after season.
-
Non-Clog Design: The disc design promotes a "scouring" effect, meaning that soil slides off the concave surface rather than sticking. This is particularly important in moist or clay-heavy soils where buildup can render a plow ineffective.
4. Lightweight and Maneuverable (190 kg)
Weighing only 190 kg, the 1LYQ-320 is exceptionally light compared to larger disc plows. This low weight offers several key advantages:
-
Tractor Compatibility: It places minimal stress on the rear axle and hydraulic system of small tractors.
-
Transport: The implement is easier to move and store when not in use.
-
Soil Compaction: The lighter overall weight reduces the risk of soil compaction in the field, preserving soil structure and promoting healthier root growth.
-
Agility: The combination of light weight and a three-disc design allows the plow to follow the contours of the land more effectively, making it ideal for undulating or uneven terrain.
5. Hydraulic Angle Adjustment
Despite its compact size, the 1LYQ-320 features a hydraulic adjustment system that allows the operator to modify the angle of the disc gang. By changing the angle, the farmer can control how aggressively the soil is turned:
-
Steeper Angle: Provides better soil inversion and weed burial.
-
Shallower Angle: Reduces draft and is better for shallow stubble cleaning or working in extremely hard soil.
Ideal Applications
The 1LYQ-320 is a versatile tool suited for a wide range of applications:
1. Smallholder and Subsistence Farming
For farmers working on 1 to 10 acres of land, this plow is the ideal primary tillage tool. It is affordable, easy to maintain, and perfectly matched to the smaller tractors commonly found in developing regions and smallholdings worldwide.
2. Orchards and Vineyards
The compact 600mm width is a critical feature for permanent crop environments. The plow can pass between tree rows and vine stakes without damaging the plants or the implement. It is excellent for inter-row cultivation, weed control, and incorporating organic matter between crop rows.
3. Greenhouse and Nursery Operations
In controlled environments like greenhouses and nurseries, space is at a premium. The 1LYQ-320's small turning radius and narrow working width allow operators to prepare seedbeds efficiently without wasting valuable growing space.
4. Dry Land Farming
Disc plows are renowned for their performance in dry conditions. Where a moldboard plow might struggle to penetrate a sun-baked crust, the 1LYQ-320's rolling discs can cut through effectively, preparing the soil for the next planting season.
Conclusion
The 1LYQ-320 Disc Plow represents the perfect synergy between power and precision. Designed specifically for the 25-40hp tractor class, it offers small-scale farmers and specialty crop growers a durable, efficient, and versatile tillage solution. With its 600mm working width, 200mm plowing depth, and lightweight 190kg frame, it is the ideal implement for preparing seedbeds, managing orchards, and maintaining healthy soil in smaller fields. The 1LYQ-320 proves that big results can come in small packages.
