Engines
With an annual output of 50,000 units, we can produce engines (both diesel and gasoline types) that meet the requirements of the overseas commercial vehicle market, and offer OEM (Original Equipment Manufacturing) services.
| 五十铃及4Y发动机主要参数 | ||||
| Model 型号 |
Unit 单位 |
4JB1 | 4B1TC | 4Y |
| Type 发动机形式 | Four Cylinders,Straight Line,Water Cooling 直列四缸水冷发动机 |
Four Cylinders,in line, Water Cooling,Supercharger,EGR,electronic control 直列四缸水冷,增压，EGR电控发动机 |
Four Cylinders,in line, Water Cooling,Delphi Systems 直列四缸水冷，德尔福电控发动机 |
|
| Oil Supply System 燃油及供给系统 |
Diesel：VE pump/P injector 柴油，VE/P泵，缸内喷射 |
Diesel：VE pump/P injector 柴油，VE/P泵，缸内喷射 |
gasoline:electronic injection 汽油，电控缸内喷射 |
|
| Cylinder × Stroke 缸径×行程 |
93×102 | 91×86 | ||
| Compression Ratio 压缩比 | 17.4：1 | 8.8：1 | ||
| Exhaust Volume 排量 | L | 2.772 | 2.237 | |
| Calibration Power/Speed 最大功率/转速 |
Kw/r/min | 57/3600 | 68/3600 | 76/4300 |
| Maximum Torque And Speed 最大扭矩/转速 |
N·m/r/min | 225/≤2300 | 280/≤2300 | 193/2000—2600 |
| Minimum Fuel Consumption 最小燃油消耗 |
g/Kw·h | ≤222 | ≤220 | ≤275 |
| Emission Level 排放 | EURO ⅠⅢⅣ | EURO Ⅲ | EURO Ⅰ—EURO Ⅳ | |
| Engine idle speed 怠速转速 | r/min | 800±20 | 800—850 | |
| Net Quality 净质量 | Kg | 251 | 251 | 145 |
| Size 尺寸 | mm | 780.5×635×713 | 780.5×633×694 | 699×552×650 |
| price range价格区间 | 台 | 人民币：1.3万元-1.6万元 | 人民币：0.7万元——1.0万元 | |

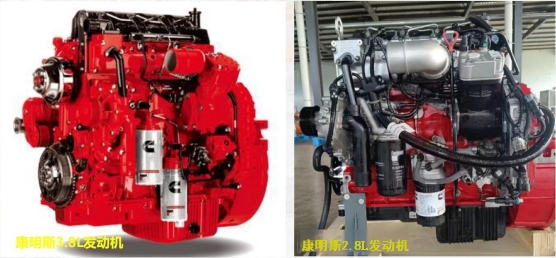

| 康明斯发动机主要参数 | |||
| Model 型号 |
Unit 单位 |
ISF2.8 | ISF3.8 |
| Type 发动机形式 | Four Cylinders,Straight Line,Water Cooling 直列四缸水冷发动机 |
||
| Oil Supply System 燃油及供给系统 |
Diesel,Boosting Intercooling,Bosch High Voltage Common Rail 柴油，增压中冷，博世高压共轨 |
||
| Cylinder × Stroke 缸径×行程 |
94×100 | 102×115 | |
| Compression Ratio 压缩比 | 16.5：1 | 17.2:1 | |
| Exhaust Volume 排量 | L | 2.776 | 3.76 |
| Calibration Power/Speed 最大功率/转速 |
Kw/r/min | 96/2900 | 105/2600 |
| Maximum Torque And Speed 最大扭矩/转速 |
N·m/r/min | 260-360/≤3400 | 440-600/≤2200 |
| Minimum Fuel Consumption 最小燃油消耗 |
g/Kw·h | 205 | 195 |
| Emission Level 排放 | 国三——国六 | ||
| Net Quality 净质量 | Kg | 214 | 335 |
| Size 尺寸 | mm | 642×655×718 | 810×695×806 |
| price range价格区间 | 台 | 人民币：2.7万元——3.5万元 | |

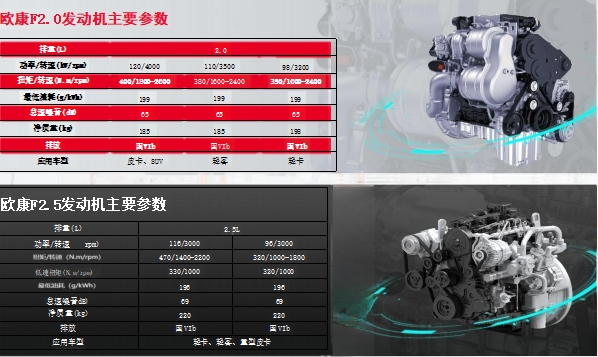

| 欧康F2.5/2.0发动机主要参数 | |||||
| Exhaust Volume 排量 | 2.5L | 2.0 | |||
| Calibration Power/Speed 最大功率/转速 |
116/3000 | 96/3000 | 120/4000 | 110/3500 | 98/3200 |
| Maximum Torque And Speed 最大扭矩/转速 |
470/1400-2200 | 320/1000-1800 | 400/1800-2600 | 380/1600-2400 | 350/1600-2400 |
| Minimum Fuel Consumption 最小燃油消耗 |
196 | 196 | 199 | 199 | 199 |
| Idle noise怠速噪音（dB） | 69 | 69 | 65 | 65 | 65 |
| Net Quality 净质量 | 220 | 220 | 185 | 185 | 198 |
| Emission Level 排放 | 国VIb | 国VIb | 国VIb | 国VIb | 国VIb |
| price range价格区间 | 人民币：2.7万元——3.5万元 | ||||
| Company Name | Shanghai Songyu Auto Parts Co,Ltd. | Country/Region | China |
| Business Type | Retailer | Company Size | 10+ |
| Established | September 26, 2016 | ||
| Address | ShanghaiJinshanRoom1245No8Lane65Huandong1stRoad | ||
| Main Products | Engines, filters, clutches, commercial vehicle complete vehicles and chassis accessories, etc. | ||
Since its establishment in 2016, the company has successively handled the import and export rights of vehicles and the export rights of medium and large buses. Meanwhile, according to the needs of the company's business development, GB/T19001-2016/ISO 9001:2015 and GB/T24001-2016/ISO 14001:2015 respectively obtained Israel MOBIL EYE lane departure system, EMP electronic water pump in the United States, WABCO(ABS system) authorized dealer qualification.The company's business scope: passenger car export, SKD project and CKD project overseas assembly, parts procurement, manufacturing, sales; Import and export of goods and technology. In the face of the challenges of economic globalization, Songyu Automobile Co., Ltd. will be committed to becoming the most competitive auto parts company to provide value-added services for customers as the vision, the business philosophy of "customer first, win-win cooperation" , along the development path of "specialization, core, marketization and internationalization". We strive to provide customers with more value, plan for employees' well-being and create wealth for the society.
