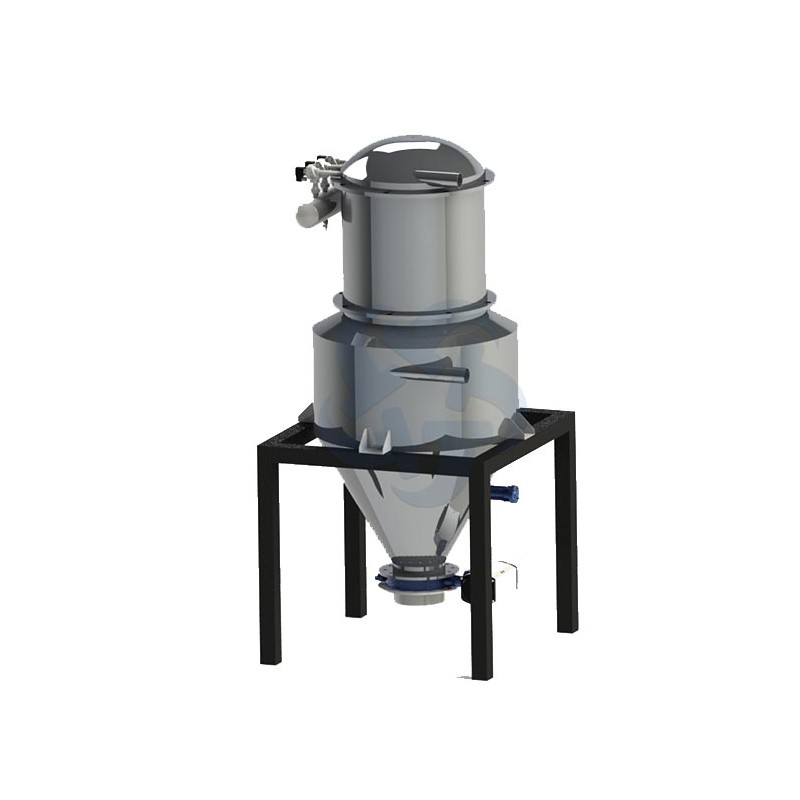

High-Efficiency Pneumatic Conveying System for Powder & Granule Handling – Dust-Free, Continuous Material Transfer Solution

Product Overview

Samsara’s pneumatic conveying systems provide a highly efficient, enclosed, and dust-free solution for transporting bulk powders, granules, flakes, and pellets over long distances. Using air pressure or vacuum, materials are suspended in an airstream and transferred through pipelines to one or multiple destinations. The system can be easily integrated with existing production equipment and customized to meet specific process requirements.

---

Key Features

• Flexible Configuration: Can be routed vertically or horizontally, adapting to any plant layout.

• Enclosed & Dust-Free: Prevents contamination of both product and environment, ideal for hazardous or fine materials.

• Versatile Handling: Suitable for powders, pellets, flakes, tablets, and friable materials.

• High Capacity: Handles conveying rates from a few pounds to several tons per hour.

• Easy Integration: Requires minimal floor space and can pass through small walls or ceiling openings.

• Custom-Engineered: Fully integrated with existing or new systems, ensuring smooth automation.

• Energy Efficient: Optimized airflow design for reduced power consumption.

• Industrial & Sanitary Options: Available in food-grade, pharmaceutical, and industrial standards.

---

System Classification

1. Positive Pressure Pneumatic Conveying System

• Uses a positive displacement blower to push materials through the pipeline.

• Suitable for long-distance, high-capacity conveying from one source to multiple destinations.

• Features rotary airlock valves to maintain pressure balance.

• Efficient material-air separation via filter receivers or cyclone separators.

• Ideal for continuous feeding into process or storage vessels.

2. Vacuum Pneumatic Conveying System

• Employs a vacuum pump to draw materials into the system.

• Best suited for multiple pickup points to single or multiple destinations.

• Provides excellent leak containment, suitable for toxic or sensitive materials.

• Simplifies feeding into mixers, reactors, or enclosed vessels under vacuum.

• Reduces the need for multiple airlocks or filter receivers.

---

Application Flexibility

• Widely used in plastics, food, pharmaceutical, chemical, and rubber industries.

• Handles diverse materials including powders, resins, additives, and granules.

• Supports both batch and continuous conveying modes.
