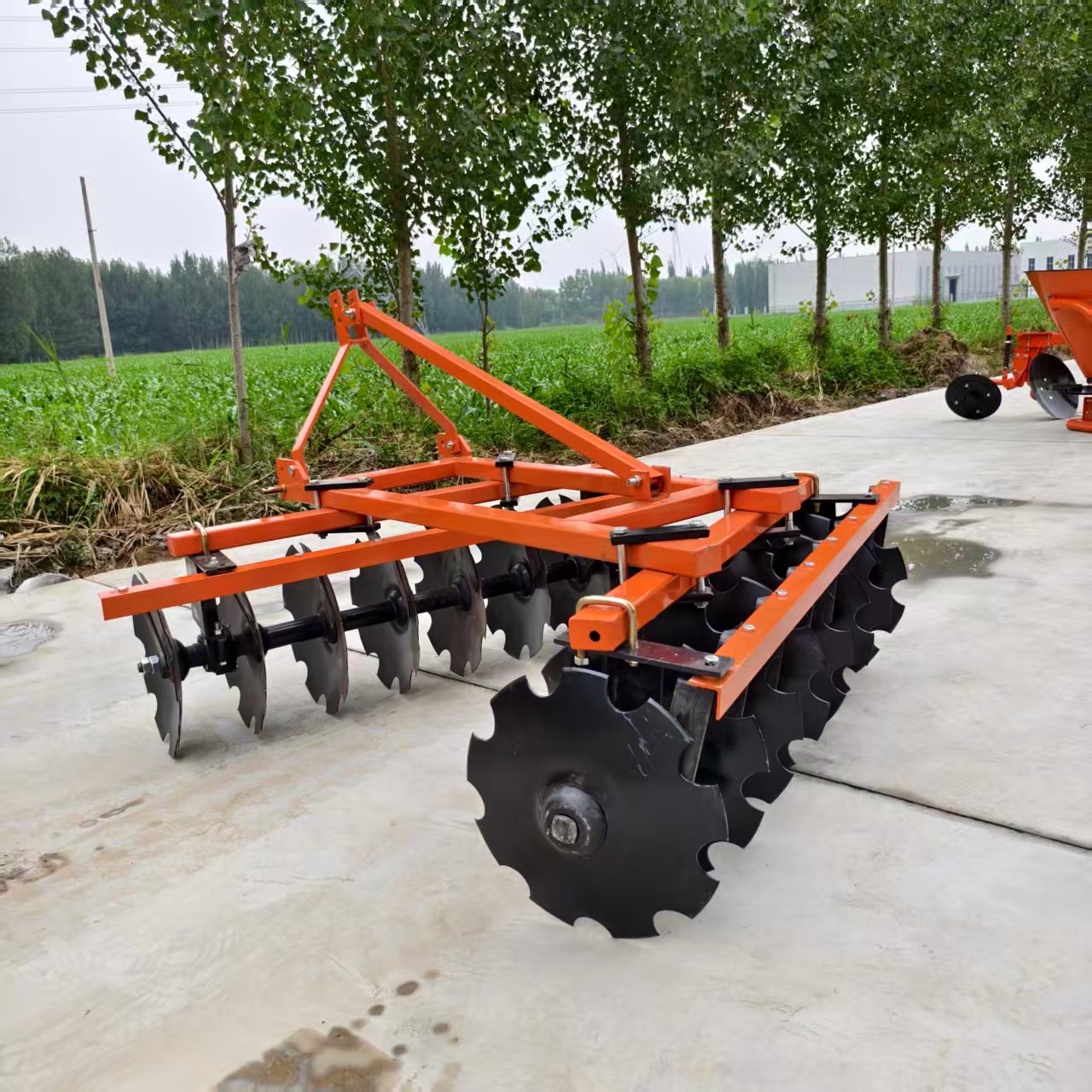

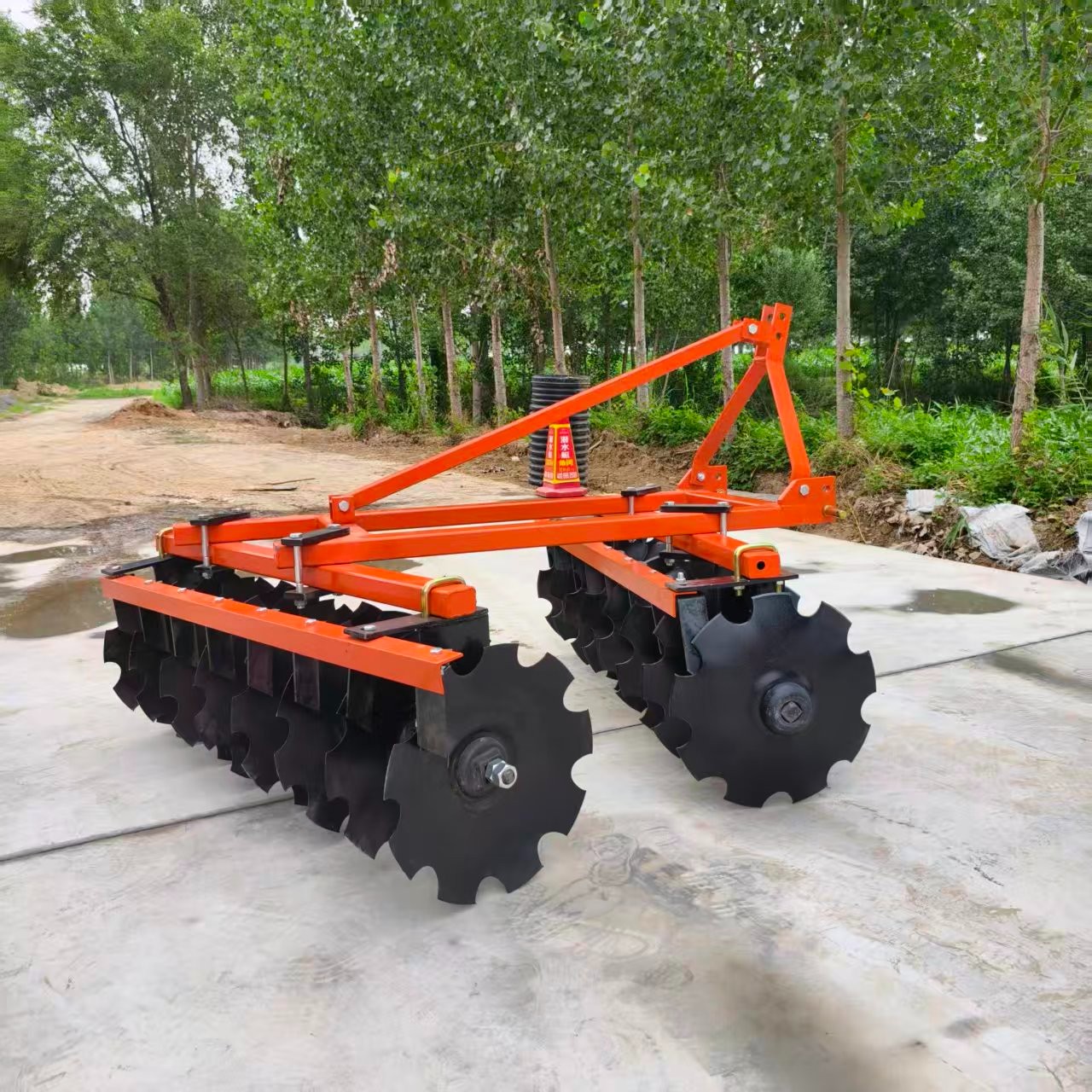

Light Rake 1BQX-1.5 – Medium Harrow for Efficient Field Leveling and Soil Preparation
Product Name: 1BQX-1.5 Light Duty Offset Disc Harrow
Suitable For: Seedbed preparation; secondary tillage; light soil cultivation; weed control; residue incorporation in small farms, orchards, and gardens.
Product Overview
The 1BQX-1.5 Light Duty Disc Harrow (classified in Chinese agricultural terminology as a "轻耙" or Light Harrow) is a compact and efficient implement designed specifically for small-scale farming operations. Following primary plowing, this light harrow is used to break up soil clods, level the field, incorporate light crop residues, and prepare a fine seedbed for planting.
Engineered for tractors in the 25 horsepower range, the 1BQX-1.5 is perfectly matched to the compact and utility tractors commonly found on smallholdings, hobby farms, and in orchard or vineyard operations. With a working width of 1300mm and a gang of 16 smooth or notched discs, this implement offers the perfect balance of coverage and maneuverability for smaller fields and tight spaces.
Key Technical Specifications
| Feature | Specification |
|---|---|
| Model | 1BQX-1.5 |
| Structure Type | Category I Three-Point Linkage |
| Working Width (工作宽度) | 1300 mm (1.3 Meters / 51 Inches) |
| Working Depth (工作深度) | 140 mm (5.5 Inches) |
| Disc Diameter (耙片直径) | 560 mm (22 Inches) |
| Number of Discs (耙片数量) | 16 Discs |
| Machine Weight (重量) | 240 kg (529 lbs) |
| Required Tractor Power | 25 hp |
| Mounting Type | Standard 3-Point Hitch (Category I) |
Detailed Features and Benefits
1. Category I Three-Point Linkage
The 1BQX-1.5 is equipped with a standard Category I three-point hitch, which is the global standard for compact and utility tractors in the 20-30 horsepower class. This ensures seamless compatibility with popular small tractor models from manufacturers worldwide. The three-point system allows for quick attachment and detachment, while hydraulic control enables precise adjustment of working depth directly from the tractor seat.
2. Compact Working Width
With a working width of 1300mm (1.3 meters) , this harrow is optimized for smaller fields and precise work.
-
Coverage: The 1.3-meter span is wide enough to cover ground at a reasonable pace for small to medium plots, making it efficient for gardens, small fields, and specialty crop areas.
-
Maneuverability: The compact width allows the implement to navigate through tight spaces such as vineyard rows, orchard alleys, and greenhouse pathways without damaging crops or infrastructure.
3. 16 Large-Diameter Discs (560mm)
The implement features 16 concave discs, each measuring 560mm (22 inches) in diameter.
-
Large Disc Advantage: Despite being a light harrow, the relatively large disc diameter (560mm) provides excellent cutting and penetration capability, even in slightly harder soils.
-
Disc Configuration: The 16 discs are arranged in an offset configuration, ensuring complete soil coverage and aggressive mixing action across the full working width.
-
Material Quality: The discs are manufactured from wear-resistant steel, often heat-treated to maintain a sharp edge and resist abrasion from sandy or rocky soils.
-
Smooth or Notched Options: Depending on the specific configuration, discs may be smooth (for lighter work and finishing) or notched (for improved residue cutting and aggressive mixing).
4. Lightweight and Tractor-Friendly (240kg)
Weighing only 240 kg, the 1BQX-1.5 is exceptionally light, offering several key advantages:
-
Tractor Compatibility: It places minimal stress on the rear axle and hydraulic system of 25hp compact tractors.
-
Fuel Efficiency: The light weight reduces draft requirements, leading to lower fuel consumption during operation.
-
Soil Protection: The lighter overall weight minimizes soil compaction, preserving soil structure and promoting healthier root growth in sensitive applications.
-
Easy Transport: The implement is easier to move, store, and handle when not in use.
5. Adjustable Working Depth (140mm)
With a working depth of up to 140mm (5.5 inches) , this harrow is ideal for secondary tillage operations. The depth can be easily adjusted via the tractor's three-point hydraulic system or through manual adjustments on the harrow itself. This flexibility allows the operator to adapt to different soil conditions and farming requirements.
Ideal Applications
1. Small-Scale Farming and Market Gardens
For farmers working on 1 to 10 acres of vegetables, flowers, or specialty crops, this harrow is the ideal secondary tillage tool. It creates the fine, uniform seedbed necessary for good germination and healthy crop establishment.
2. Orchards and Vineyards
The compact 1300mm width is ideal for inter-row cultivation in orchards and vineyards. The harrow can pass between tree rows and vine stakes without causing damage, making it excellent for weed control and soil aeration in permanent crop environments.
3. Hobby Farms and Homesteads
For hobby farmers and homesteaders maintaining gardens and small pastures, the 1BQX-1.5 offers professional-level performance in a compact, affordable package that matches their smaller tractors.
4. Greenhouse and Nursery Operations
In controlled environments like greenhouses and nurseries, space is at a premium. The 1BQX-1.5's compact size allows operators to prepare seedbeds and maintain soil health efficiently without wasting valuable growing space.
5. Light Residue Incorporation
The 16 discs effectively chop and mix light crop residues (such as vegetable trash, straw, or cover crops) into the top layer of soil, speeding up decomposition and returning nutrients to the soil.
Conclusion
The 1BQX-1.5 Light Duty Disc Harrow is the perfect secondary tillage solution for small-scale farmers and specialty crop growers. Designed specifically for the 25hp tractor class, it offers a compact 1300mm working width, a useful 140mm working depth, and the aggressive soil action of 16 large-diameter discs. Lightweight yet durable at just 240kg, this implement delivers excellent performance for seedbed preparation, weed control, and soil maintenance in smaller fields, orchards, and gardens. For quality and efficiency in a compact package, the 1BQX-1.5 is an outstanding choice.
