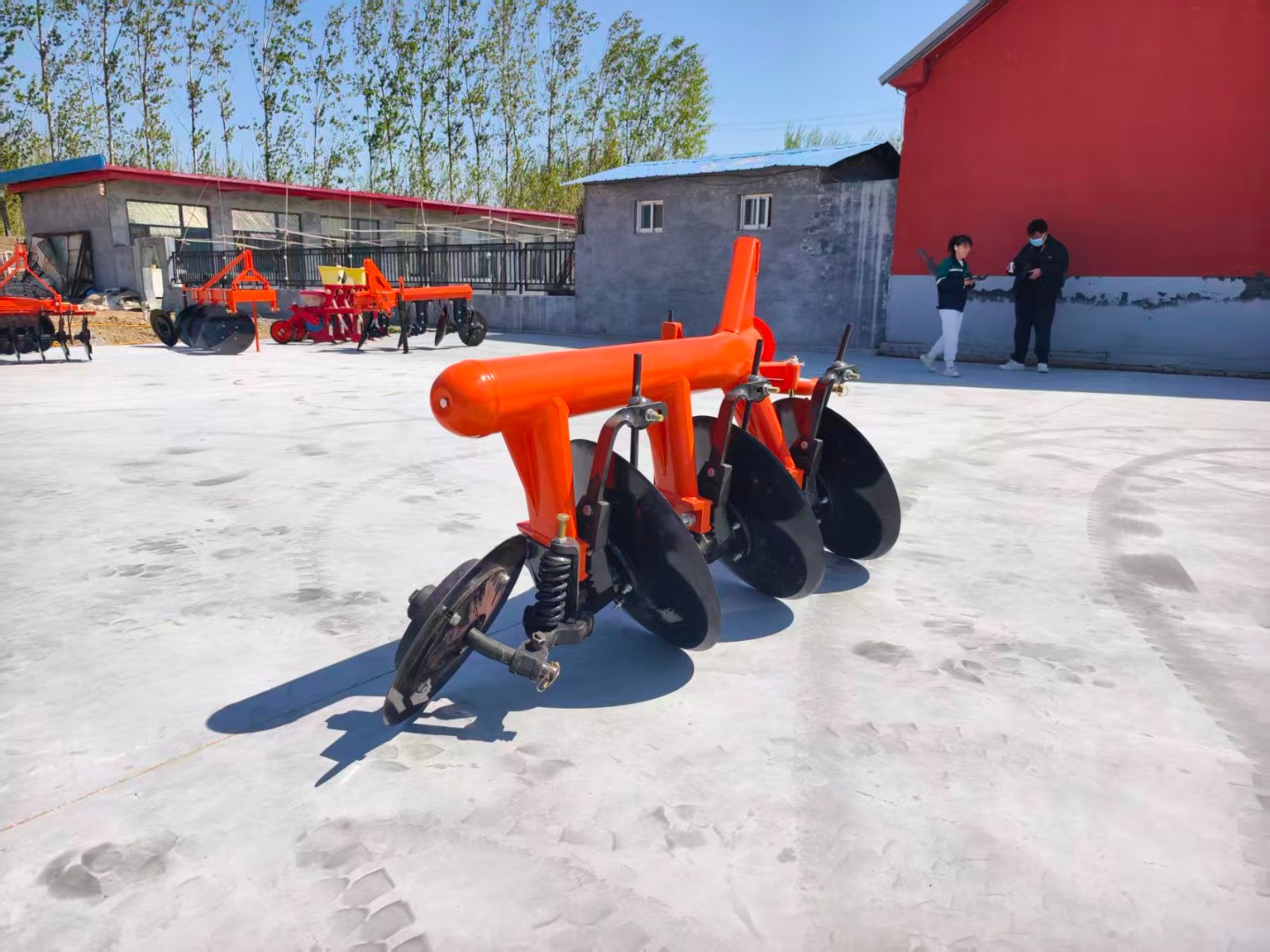

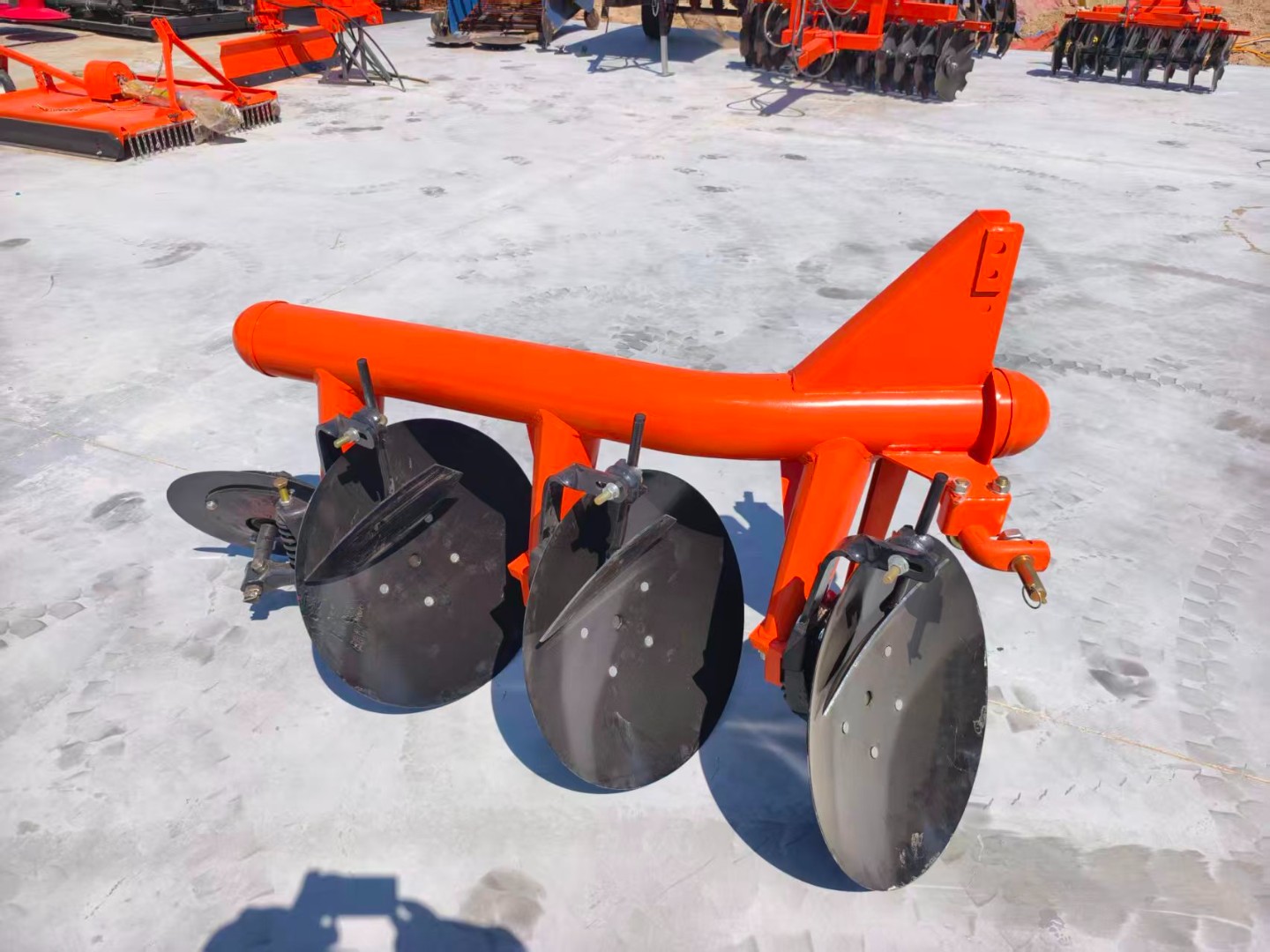

Pipe Plow 1LYX-325 – Compact Small Fish Plow for Precision Deep Tillage & Ridging
Product Name: 1LYX-325 Round Tube Disc Plow (管子犁)
Suitable For: Primary tillage in root-infested, stony, and hard soils; breaking fallow land; heavy residue incorporation; difficult field conditions.
Product Overview

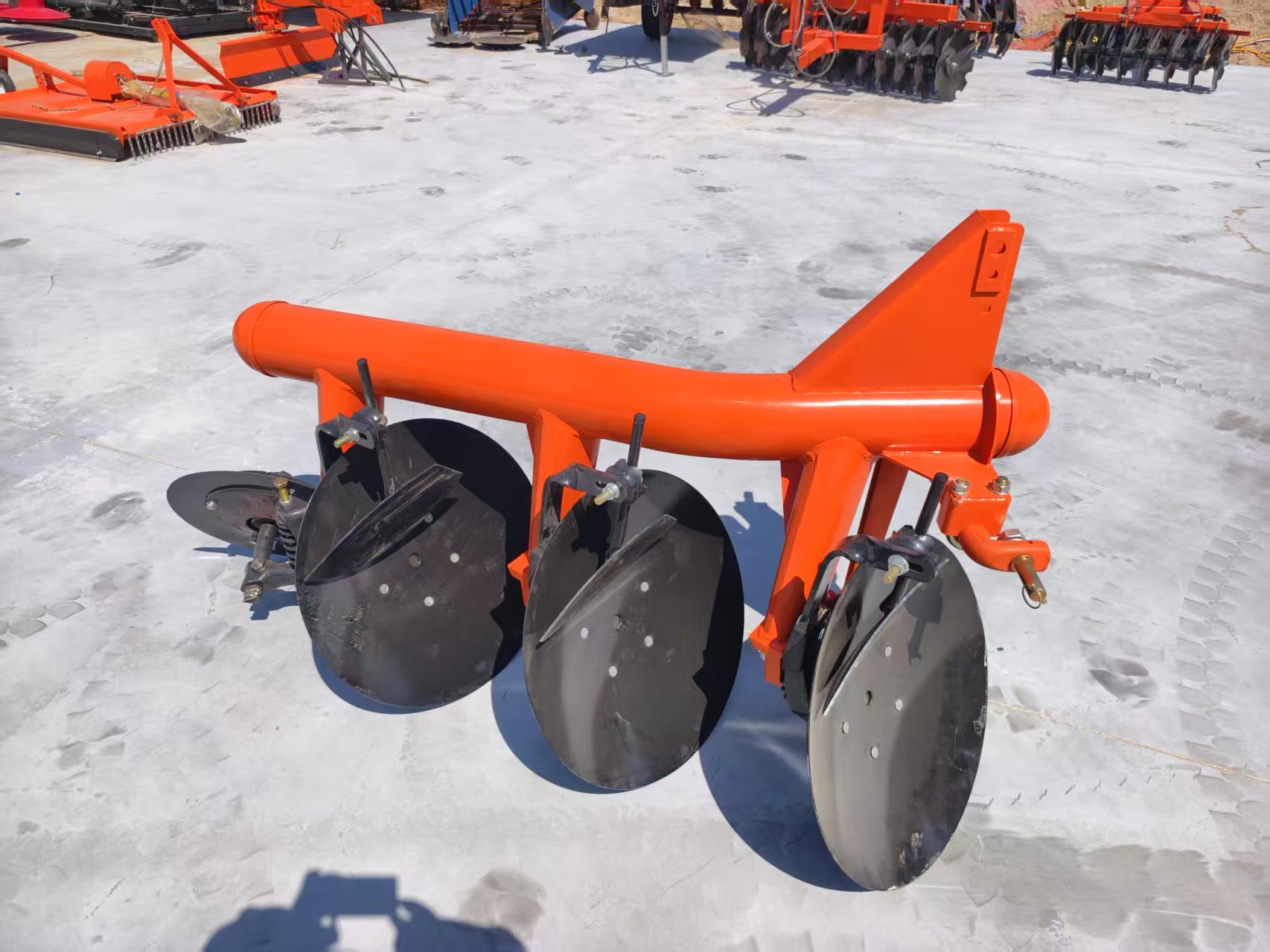

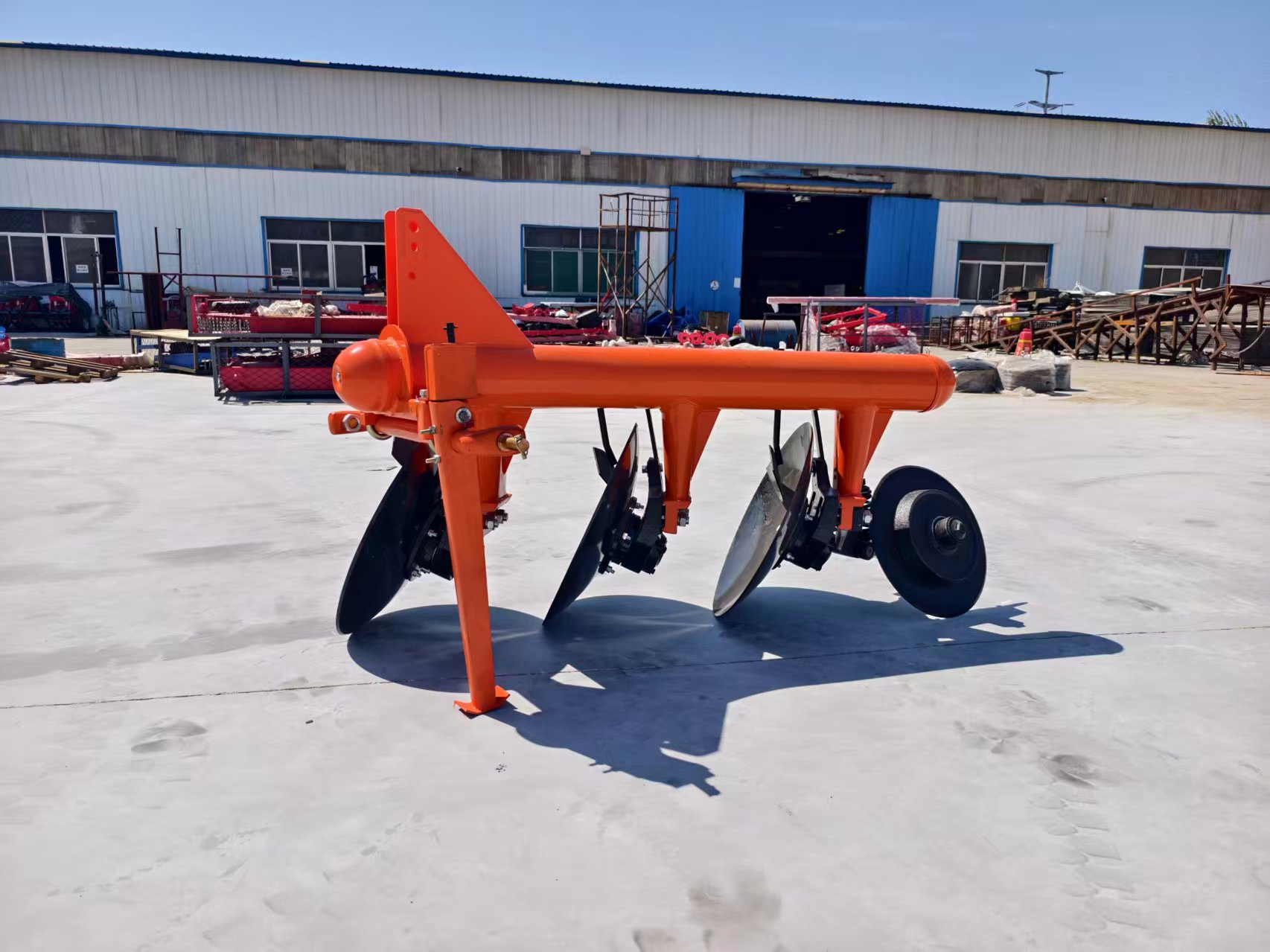

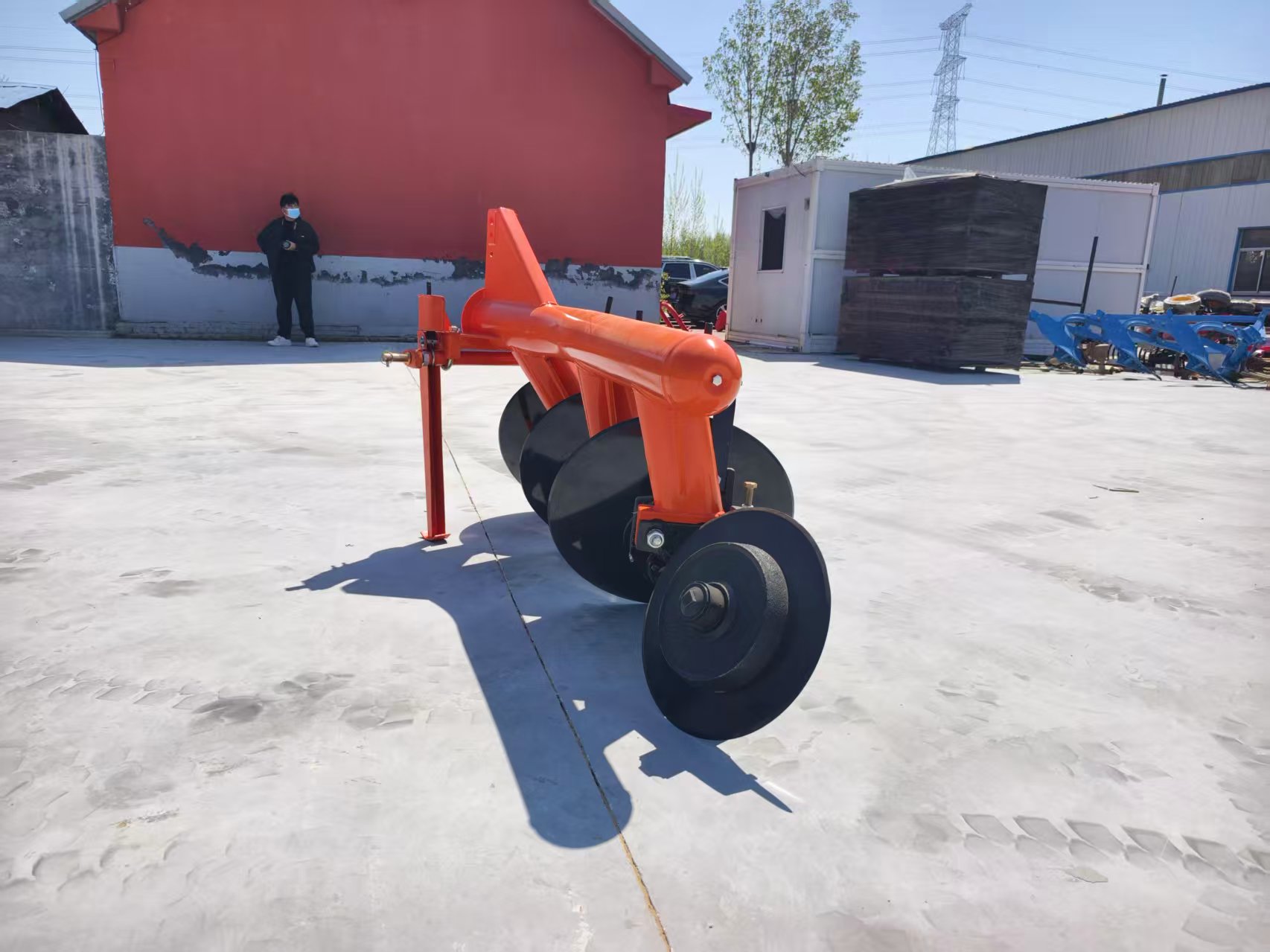

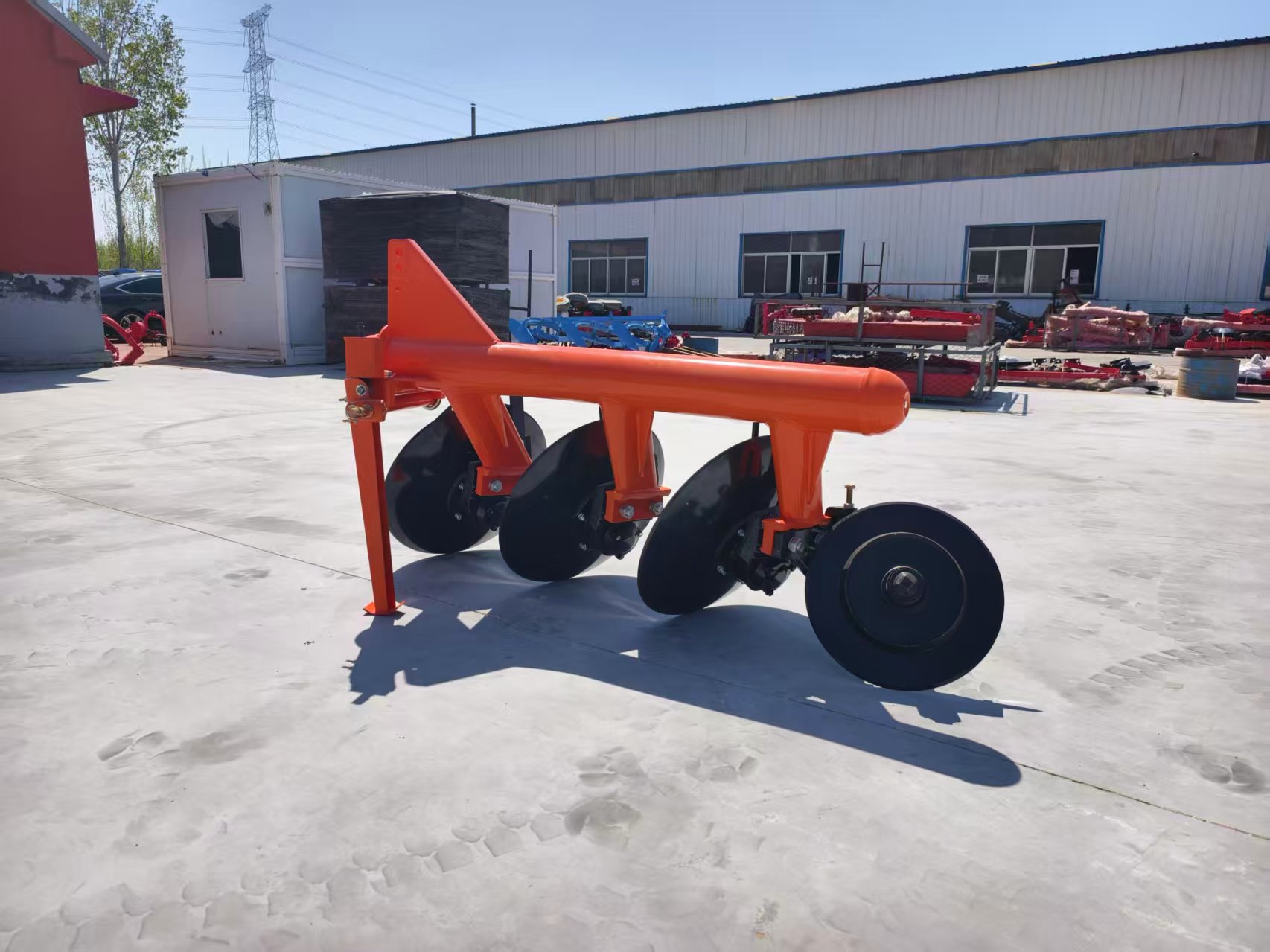

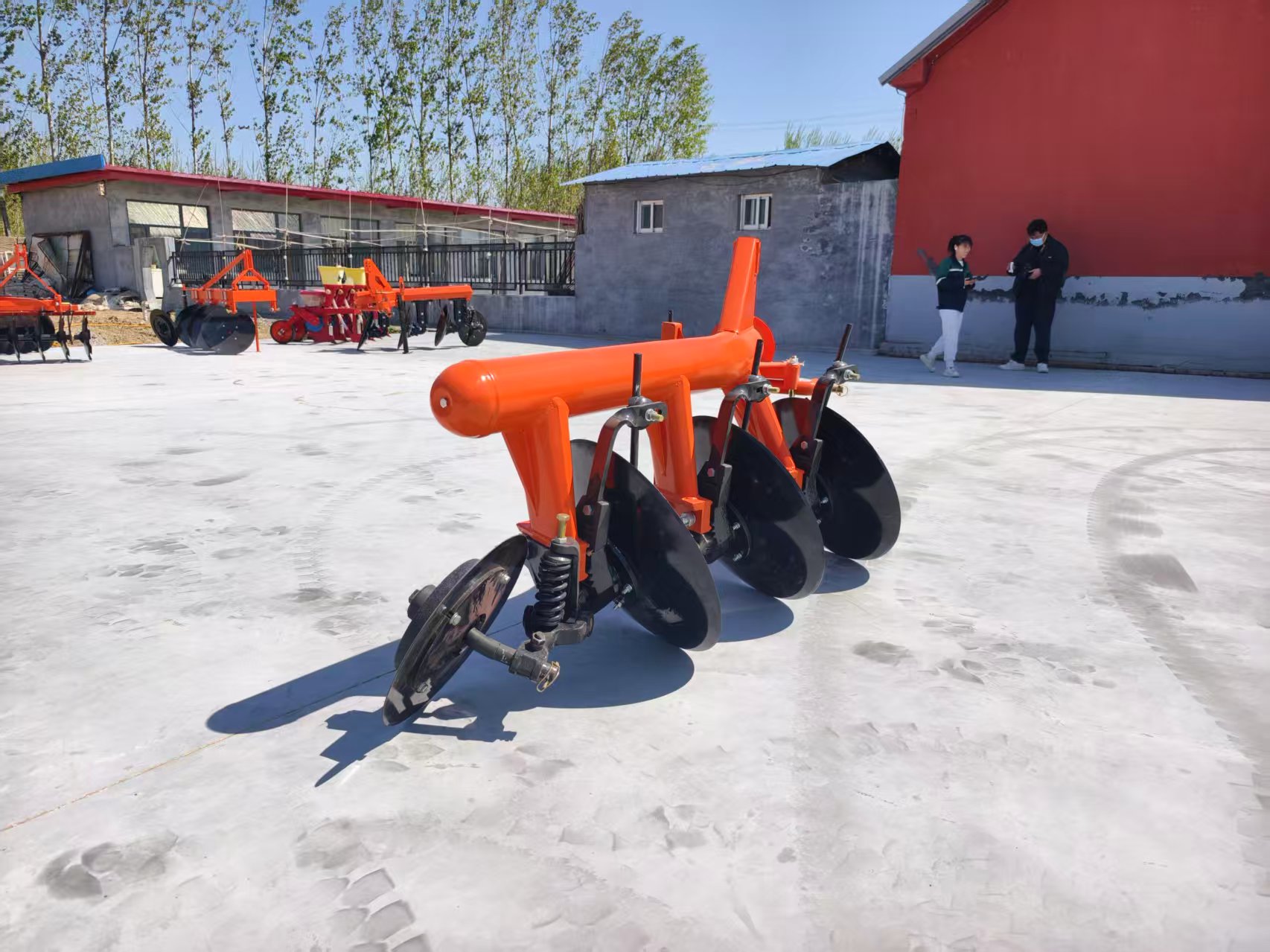

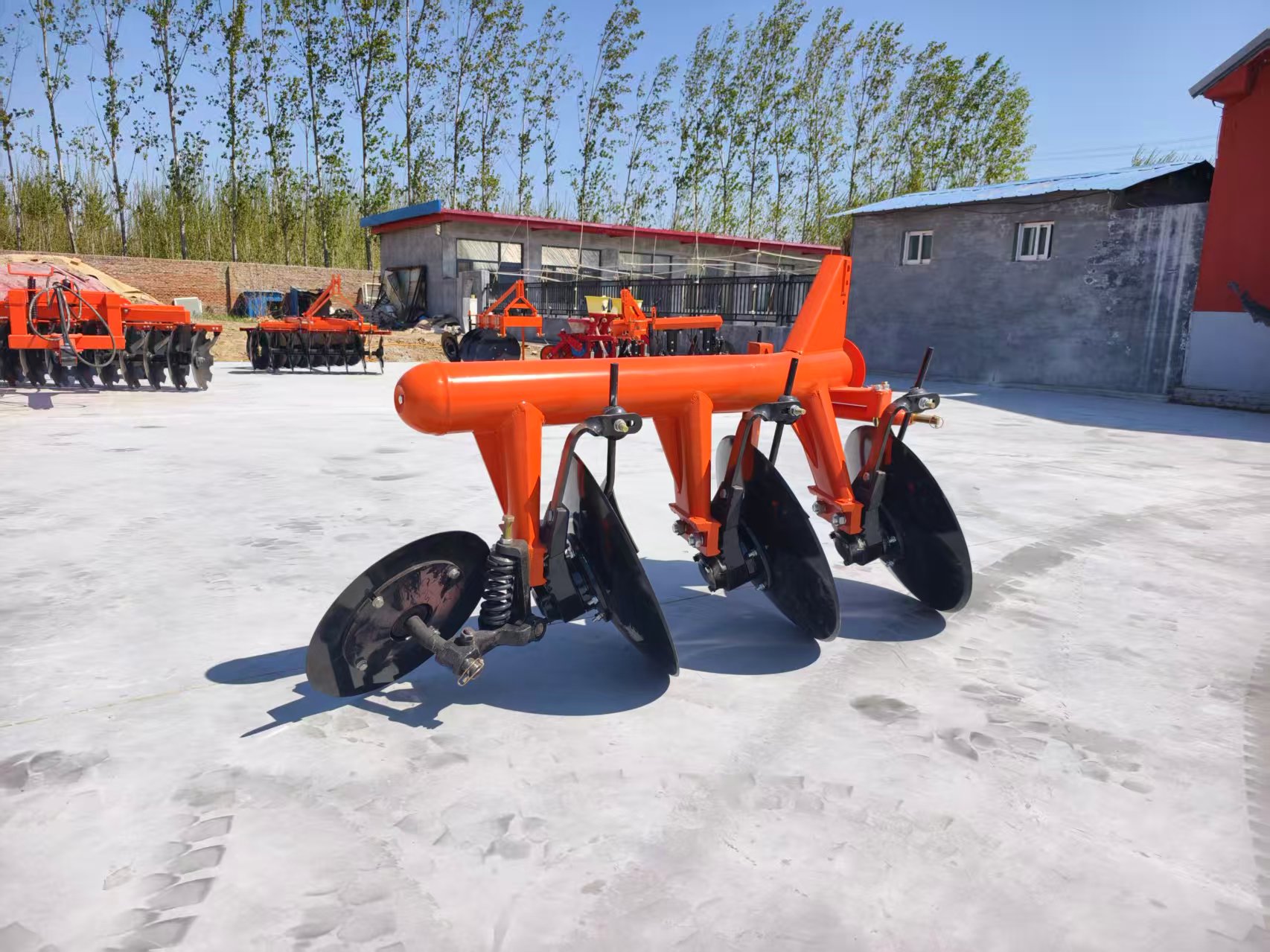

The 1LYX-325 Round Tube Disc Plow (referred to as a "管子犁" or Round Tube Disc Plow) is a specialized heavy-duty implement designed for primary tillage in the most challenging field conditions. As part of the 1LYX series, this plow features a robust frame constructed from tubular seamless steel pipe, offering exceptional strength and durability while maintaining an optimal strength-to-weight ratio .
Engineered for tractors in the 60 horsepower range, the 1LYX-325 is perfectly matched to medium-duty utility tractors. With a working width of 750mm and three 660mm diameter discs, this implement is purpose-built for farmers facing difficult tillage conditions where standard plows might struggle .
Key Technical Specifications
| Feature | Specification |
|---|---|
| Model | 1LYX-325 |
| Structure Type | Category II Three-Point Linkage |
| Working Width (工作幅宽) | 750 mm (0.75 Meters / 29.5 Inches) |
| Working Depth (工作深度) | 250 – 300 mm (10 – 12 Inches) |
| Disc Diameter (犁片直径) | 660 mm (26 Inches) |
| Number of Discs (犁片数量) | 3 Discs |
| Machine Weight (整机重量) | 360 kg (794 lbs) |
| Required Tractor Power | 60 hp |
| Mounting Type | Standard 3-Point Hitch (Category II) |
Detailed Features and Benefits
1. Category II Three-Point Linkage
The 1LYX-325 is equipped with a robust Category II three-point hitch, ensuring a secure and stable connection to tractors in the 55-80 horsepower range . This heavy-duty linkage system transfers the full power of the tractor efficiently to the soil-breaking action of the discs, while hydraulic control enables precise adjustment of working depth from the tractor cabin.
2. Round Tube Frame Construction
The defining feature of the 1LYX series is its round tube frame:
-
Superior Strength: Constructed from seamless steel pipe, the frame offers excellent resistance to twisting and flexing during deep tillage operations .
-
Durability: The tubular design distributes stress evenly, reducing the risk of frame failure in demanding conditions.
-
Weight Optimization: Provides robust strength while maintaining a manageable overall weight of 360kg.
3. Optimal Working Width
With a working width of 750mm (0.75 meters) , this plow offers excellent maneuverability while maintaining productivity:
-
Precision: The compact width is ideal for smaller fields and irregularly shaped plots.
-
Efficiency: Well-suited to 60hp tractors, this width provides optimal power utilization without overloading the tractor.
4. Deep Tillage Capability (250-300mm)
The 1LYX-325 delivers consistent working depths of 250-300mm (10-12 inches) :
-
Hardpan Breaking: Deep tillage shatters compacted layers that restrict root growth and water movement.
-
Residue Burial: Heavy crop residues and weeds are thoroughly incorporated into the soil.
-
Root Zone Preparation: Creates deep, loose soil ideal for root development in subsequent crops.
5. Three Large 660mm Discs
The heart of the 1LYX-325 lies in its three concave discs, each measuring 660mm (26 inches) in diameter:
-
Premium Material: Discs are manufactured from 65Mn high-carbon steel with a hardness of 30-44 HRC, ensuring excellent toughness and wear resistance .
-
Scouring Action: The rolling motion prevents soil buildup, ensuring consistent performance even in sticky clay conditions.
-
Obstacle Clearance: The disc design allows the plow to roll over rocks and roots rather than catching them, reducing damage risk .
6. Robust Construction (360kg)
Weighing 360 kg, the 1LYX-325 is durably built for demanding conditions:
-
Penetration Force: Substantial weight ensures positive soil penetration without excessive hydraulic downforce.
-
Quality Bearings: Disc hubs use tapered roller bearings for reduced friction and long service life .
-
Adjustable Components: Disc angle and scrapers can be adjusted to optimize performance for specific soil conditions .
Ideal Applications
1. Root-Infested and Stony Ground
The 1LYX-325 excels in fields with roots, stones, and debris where moldboard plows would suffer constant damage. Its special design allows easier work in rocky and rooted areas .
2. Heavy Clay and Hard Soils
In dry, hard conditions where soil is crusted and difficult to penetrate, the disc's rolling cut provides better penetration than fixed-share plows. It is specially useful in hard and dry land .
3. Weedy and High-Residue Fields
The plow effectively handles fields with grasses, straws, and crop stems, cutting through vegetation cleanly without clogging or blocking .
4. Virgin Land Reclamation
For bringing new land into production—whether pasture, scrubland, or previously uncultivated ground—the 1LYX-325 handles roots and vegetation effectively .
5. Heavy-Duty Primary Tillage
As a heavy-duty one-way disc plough, it is suitable for deep ploughing in sticky and difficult soils where standard implements struggle .
Conclusion
The 1LYX-325 Round Tube Disc Plow is a specialized heavy-duty tool for farmers facing difficult tillage conditions. Perfectly matched to 60hp tractors, it offers an effective 750mm working width, deep tillage down to 300mm, and the rugged performance of 3 large 660mm discs. At 360kg, it features a durable tubular steel frame designed to handle root-infested, stony, and hard soils with minimal maintenance . For farmers who need reliable performance in the toughest ground, the 1LYX-325 delivers the durability and clog-free operation required to get the job done.
