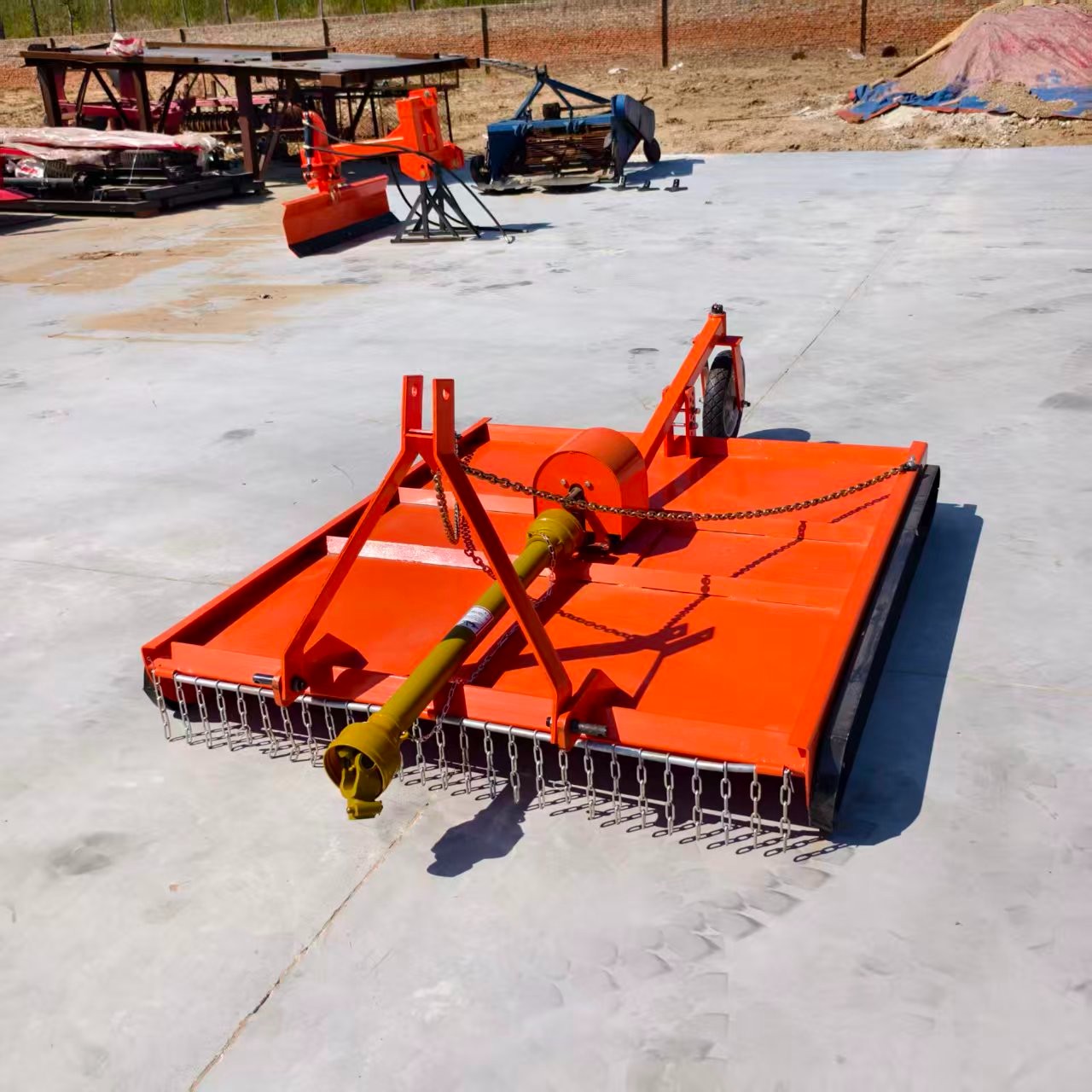

Rotary Lawnmower 9GX-1.5 – Heavy-Duty Gas-Powered Garden Mower for Efficient Lawn Care
Product Name: 9GX-1.5 Rotary Mower (Rotary Cutter / Slasher)
Suitable For: Pasture mowing; grass and weed control; hay harvesting; field trimming; orchard and roadside vegetation management.
Product Overview
The 9GX-1.5 Rotary Mower is a versatile and efficient rear-mounted implement designed for vegetation management in agricultural settings. Also known as a rotary cutter or slasher, this machine is essential for maintaining pastures, cutting overgrown weeds, trimming fields after harvest, and preparing hay. Its rotating blades deliver a clean, consistent cut across a wide range of grass and light brush conditions.
Engineered for tractors in the 40-60 horsepower range, the 9GX-1.5 is perfectly matched to medium-duty utility tractors commonly found on farms, ranches, and municipal properties. With a working width of 1500mm and a low 30-50mm stubble height capability, this mower delivers professional-quality cutting performance for a variety of applications.
Key Technical Specifications
| Feature | Specification |
|---|---|
| Model | 9GX-1.5 |
| Structure Type | Three-Point Linkage (Rear Mounted) |
| Working Width (工作宽度) | 1500 mm (1.5 Meters / 59 Inches) |
| Stubble Height (割茬高度) | 30 – 50 mm (1.2 – 2 Inches) |
| PTO Speed (PTO转速) | 540 r/min |
| Machine Weight (整机重量) | 335 kg (739 lbs) |
| Required Tractor Power | 40 – 60 hp |
| Mounting Type | Standard 3-Point Hitch |
Detailed Features and Benefits
1. Three-Point Linkage
The 9GX-1.5 features a standard three-point hitch for easy attachment to most tractors in the 40-60hp class . This rear-mounted design allows for quick connection and disconnection, while the hydraulic system enables the operator to raise and lower the mower for transport or to adjust cutting height. The linkage also allows the mower to follow ground contours for consistent cutting across uneven terrain.
2. Optimal Working Width
With a working width of 1500mm (1.5 meters) , this mower offers excellent coverage for pasture and field maintenance:
-
Efficiency: The 1.5-meter span allows operators to cover ground quickly, reducing time spent on mowing operations.
-
Maneuverability: The width is well-suited for both open fields and tighter spaces such as orchard rows or along fence lines.
3. Low Stubble Height (30-50mm)
The 9GX-1.5 is designed to cut grass and vegetation down to a very low 30-50mm (1.2-2 inches) stubble height:
-
Clean Finish: This low cut provides a manicured appearance suitable for pastures, hayfields, and amenity areas.
-
Effective Weed Control: Cutting close to the ground helps suppress weed growth and encourages dense, healthy grass regrowth.
-
Hay Quality: For hay production, a low cut maximizes the volume of harvestable material.
4. 540 RPM PTO Drive
The mower is driven by the tractor's power take-off (PTO) at the standard 540 rpm speed . This direct drive system efficiently transfers power to the cutting mechanism, ensuring consistent blade speed for a clean cut even in dense vegetation. The PTO shaft typically features a 6-spline connection and may include a shear bolt or slip clutch for protection against overloads .
5. Durable Construction (335kg)
Weighing 335 kg, the 9GX-1.5 is robustly built for reliable performance:
-
Sturdy Frame: Constructed from heavy-duty steel to withstand the stresses of mowing in rough conditions.
-
Blade Quality: Blades are typically made from heat-treated 65Mn steel or similar wear-resistant material for long life and consistent cutting performance .
-
Protective Features: Many models include protective chains at the front and rear to shield the operator and bystanders from debris .
6. Adjustable Cutting Height
The cutting height can be adjusted to suit different conditions and user preferences, typically via the tractor's three-point linkage or through adjustable rear rollers or skids. This flexibility allows the operator to achieve the desired stubble height for various applications .
Ideal Applications
1. Pasture and Grassland Maintenance
The primary application for the 9GX-1.5 is regular mowing of pastures and grasslands. It keeps vegetation at a manageable height, promotes healthy grass growth, and improves grazing conditions for livestock.
2. Hay and Forage Harvesting
For farmers producing hay, the 9GX-1.5 efficiently cuts grass and legumes for drying and baling. The clean cut promotes even drying and high-quality forage.
3. Orchard and Vineyard Management
The 1.5-meter width is ideal for mowing between tree rows and vine stakes, keeping vegetation under control without damaging crops.
4. Roadside and Right-of-Way Maintenance
Municipalities and landowners can use the 9GX-1.5 to maintain roadsides, ditches, and rights-of-way, ensuring clear visibility and preventing overgrowth.
5. Fallow Field Management
On land resting between crop rotations, this mower keeps weed growth in check, preventing weed seed production and reducing future tillage requirements.
Conclusion
The 9GX-1.5 Rotary Mower is a reliable, efficient, and versatile cutting tool for pasture and vegetation management. Perfectly matched to 40-60hp tractors, it offers a productive 1500mm working width, a clean low cut down to 30-50mm, and the simplicity of 540 rpm PTO drive. At 335kg, it is durably constructed for years of dependable service. Whether for pasture maintenance, hay harvesting, or general field trimming, the 9GX-1.5 delivers professional results with every pass.
