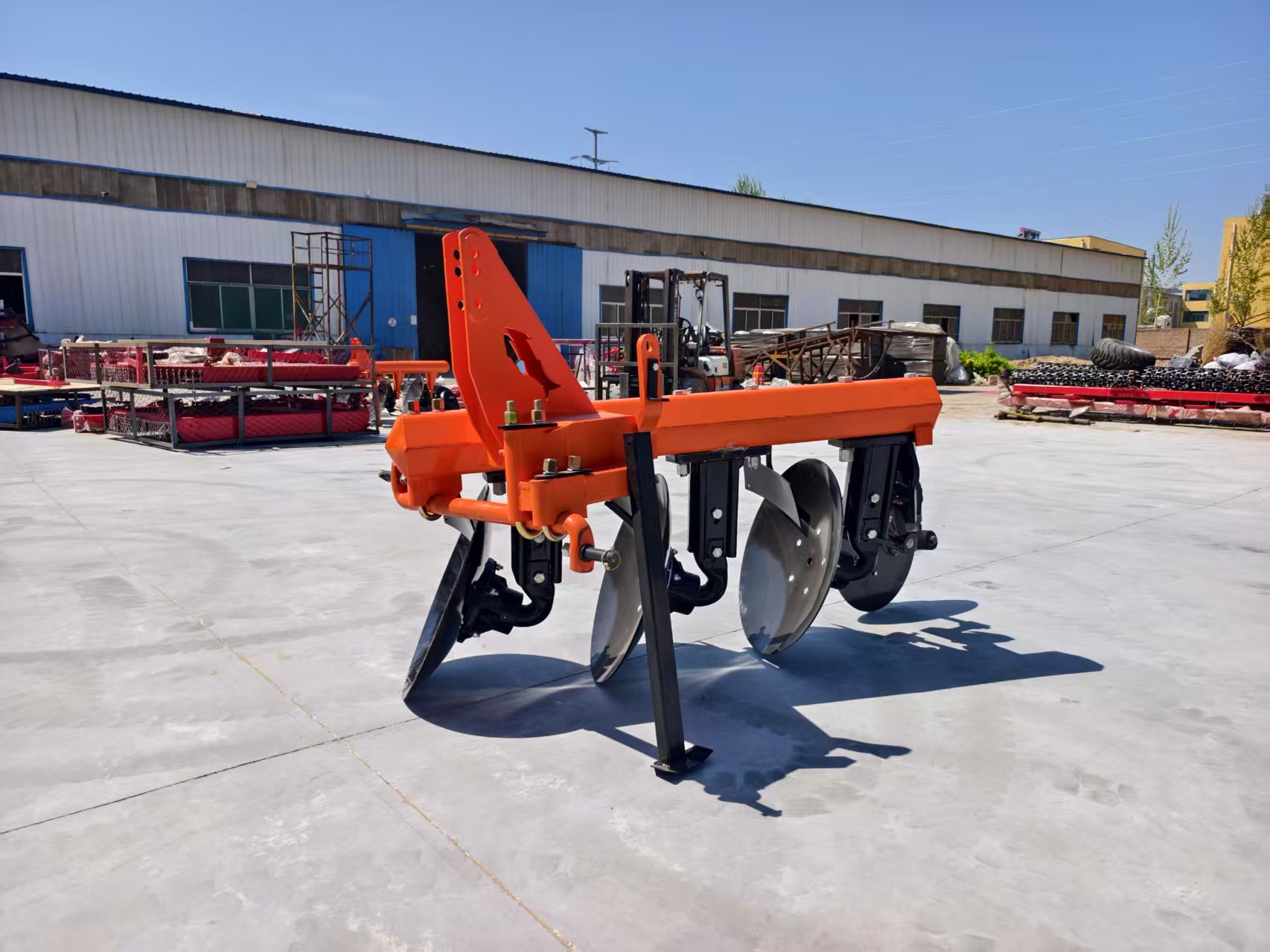

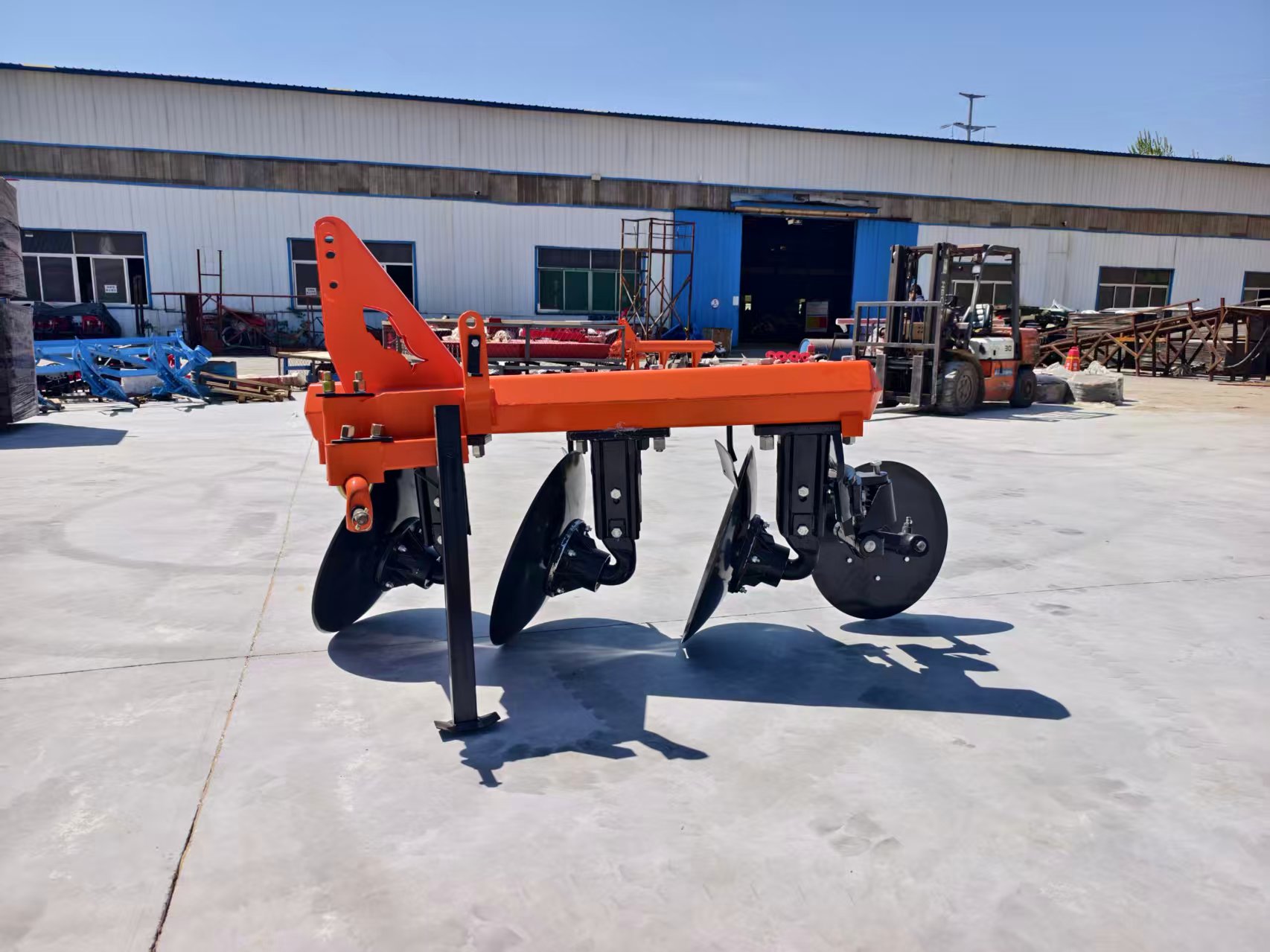

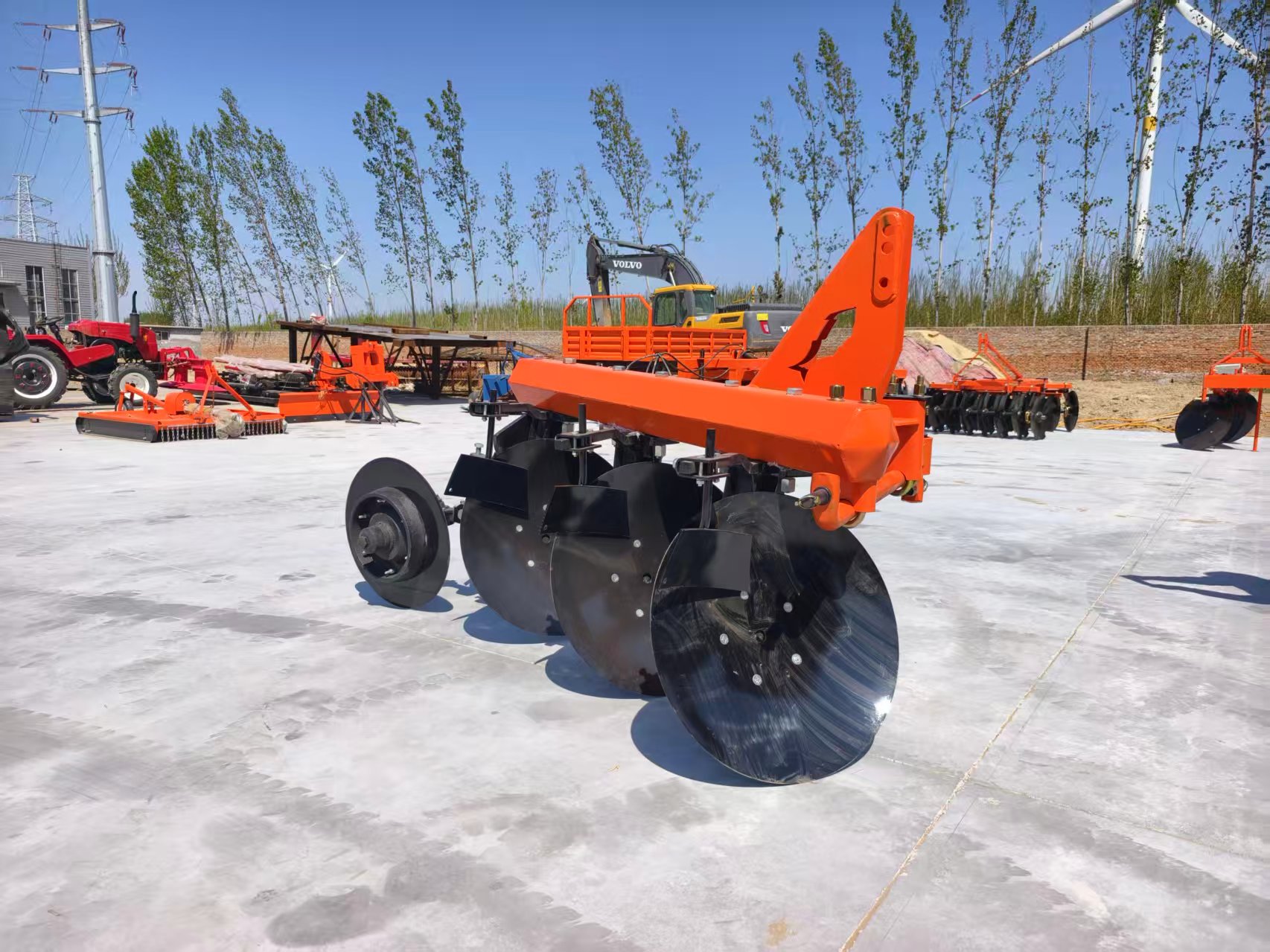

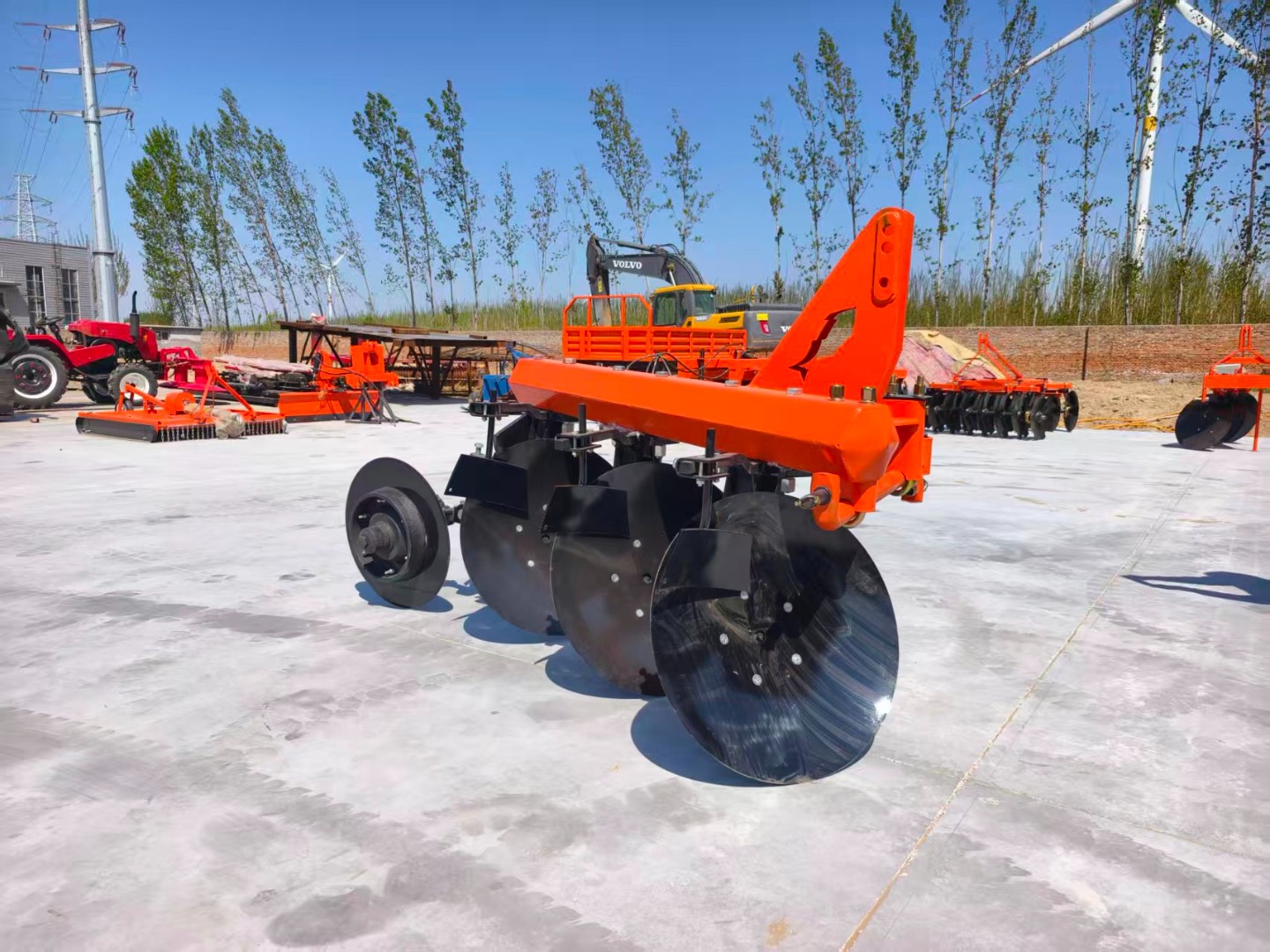

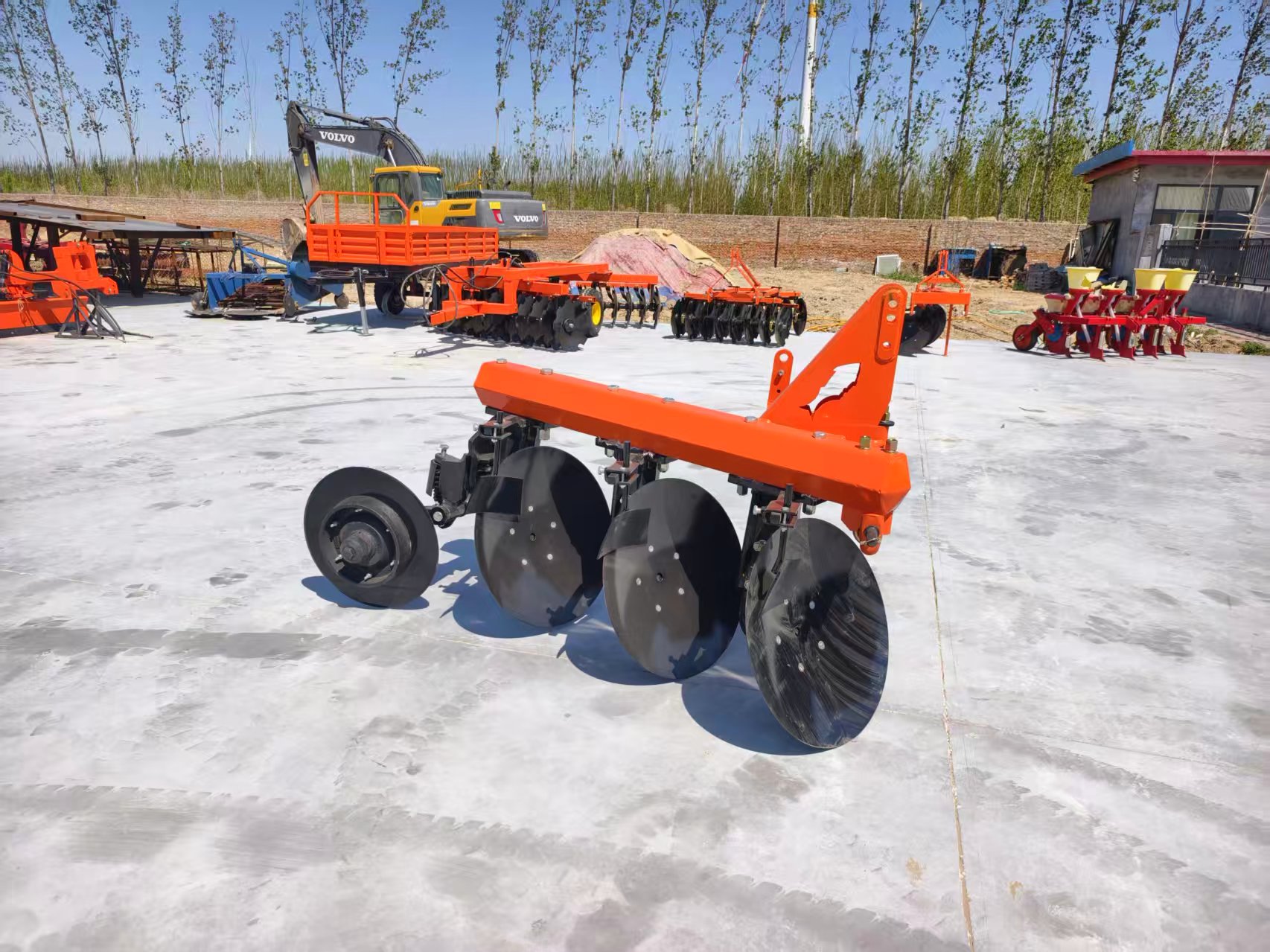

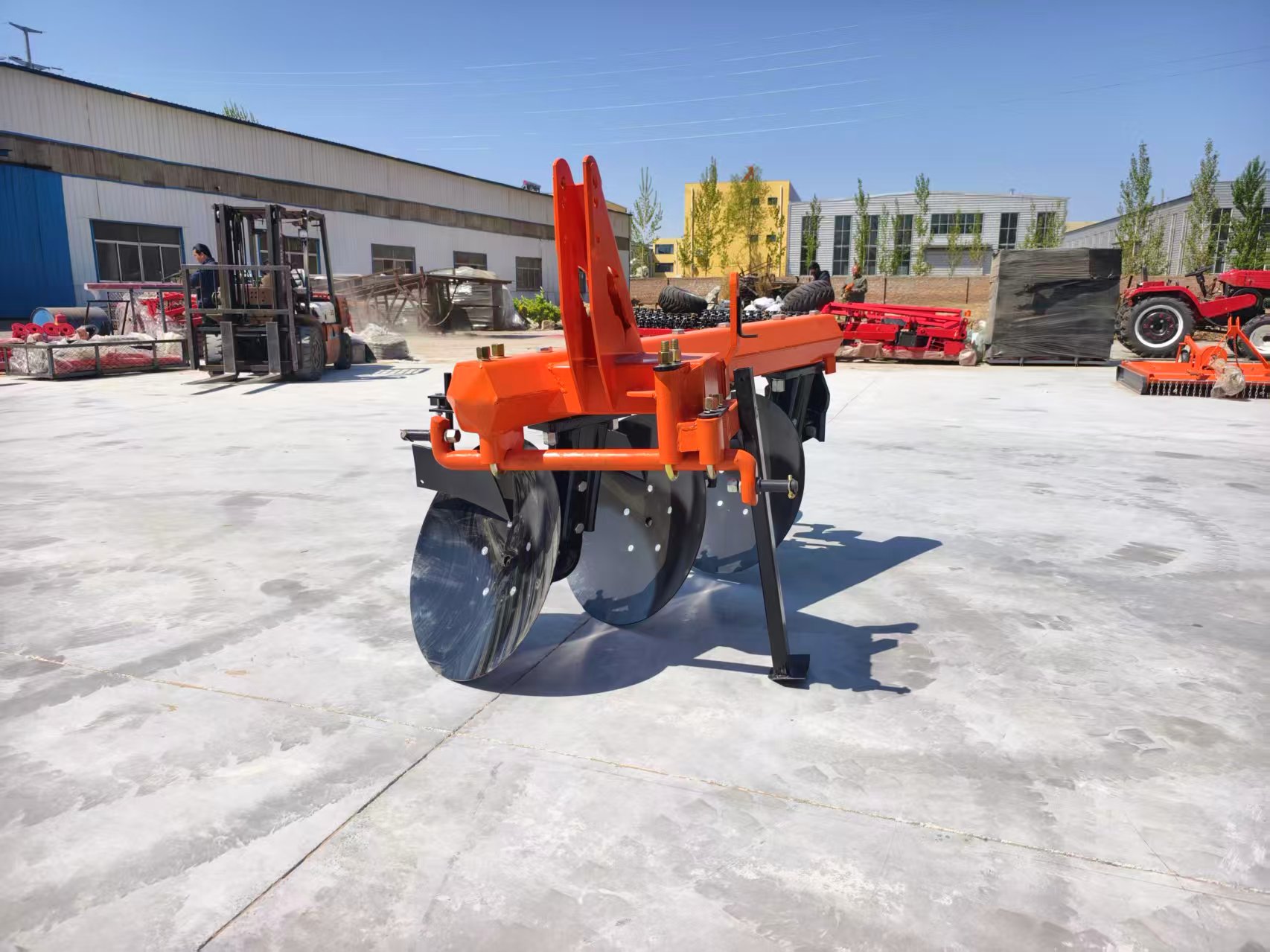

Small Fish Plow 1LY-3 Deep Tillage Machine for Efficient Soil Preparation
Product Name: 1LY-3 Fish Disc Plow (小鱼犁)
Suitable For: Primary tillage in overgrown fields; stony and root-laden ground; breaking fallow land; heavy residue incorporation; difficult soil conditions.
Product Overview
The 1LY-3 Fish Disc Plow (affectionately known as the "小鱼犁" or Small Fish Disc Plow) is a specialized primary tillage implement designed to excel where conventional moldboard plows struggle. Unlike traditional plows that use a fixed share, this disc plow utilizes three large concave discs that rotate as they cut through the soil. This rolling action is particularly advantageous in challenging field conditions—such as areas with heavy weeds, standing crop stubble, high soil resistance, or scattered rocks and debris .
Engineered for tractors in the 60 horsepower range, the 1LY-3 strikes an ideal balance between robust construction and manageable power requirements. With a working width of 900mm and three 660mm diameter discs, this implement is purpose-built for farmers facing difficult tillage conditions where standard plows would clog, snag, or suffer damage .
Key Technical Specifications
| Feature | Specification |
|---|---|
| Model | 1LY-3 |
| Structure Type | Category II Three-Point Linkage |
| Working Width (工作幅宽) | 900 mm (0.9 Meters / 35.4 Inches) |
| Working Depth (工作深度) | 250 – 300 mm (10 – 12 Inches) |
| Disc Diameter (犁片直径) | 660 mm (26 Inches) |
| Number of Discs (犁片数量) | 3 Discs |
| Machine Weight (整机重量) | 400 kg (882 lbs) |
| Required Tractor Power | 60 hp |
| Mounting Type | Standard 3-Point Hitch (Category II) |
Detailed Features and Benefits
1. Category II Three-Point Linkage
The 1LY-3 is equipped with a robust Category II three-point hitch, ensuring a secure and stable connection to tractors in the 50-70 horsepower class. This heavy-duty linkage system transfers the full power of the tractor efficiently to the soil-breaking action of the discs, while hydraulic control enables precise adjustment of working depth from the tractor cabin .
2. Optimal Working Width
With a working width of 900mm (0.9 meters) , this plow offers excellent maneuverability while maintaining productivity:
-
Efficiency: The 900mm span allows farmers to cover ground at a reasonable pace in challenging conditions.
-
Maneuverability: The compact width is ideal for smaller fields and irregularly shaped plots where larger implements would be cumbersome.
3. Deep Tillage Capability (250-300mm)
The 1LY-3 delivers consistent working depths of 250-300mm (10-12 inches) :
-
Hardpan Breaking: Deep tillage shatters compacted layers that restrict root growth and water movement.
-
Residue Burial: At this depth, heavy crop residues and weeds are thoroughly incorporated into the soil.
-
Root Zone Preparation: Creates deep, loose soil ideal for root development in subsequent crops .
4. Three Large 660mm Discs
The heart of the 1LY-3 lies in its three concave discs, each measuring 660mm (26 inches) in diameter:
-
Durability: Discs are manufactured from wear-resistant steel, often heat-treated to maintain sharpness and resist abrasion .
-
Scouring Action: The rolling motion prevents soil buildup, ensuring consistent performance even in sticky clay conditions.
-
Obstacle Clearance: The disc design allows the plow to roll over rocks and roots rather than catching them, reducing damage risk .
5. Robust Construction (400kg)
Weighing 400 kg, the 1LY-3 is durably built for demanding conditions:
-
Penetration Force: Substantial weight ensures positive soil penetration without excessive hydraulic downforce.
-
Heavy-Duty Frame: Constructed from high-quality steel tubing with welded construction for excellent rigidity .
-
Bearing Quality: Features tapered roller bearings in disc assemblies for reduced friction and long service life .
6. Obstacle-Friendly Design
The 1LY-3 excels where other plows fail:
-
Non-Clogging: Designed to shed weeds and residue rather than accumulating them .
-
Impact Resistance: Can operate in fields with scattered rocks and debris without frequent damage.
-
Adjustable Angle: Disc angle can be adjusted to optimize performance for specific soil conditions .
Ideal Applications
1. Overgrown and Weedy Fields
The 1LY-3's non-clog design makes it ideal for reclaiming overgrown land or working in fields with heavy weed pressure. It cuts through vegetation cleanly without wrapping or blocking .
2. Stony Ground
In regions with rocky soils, the rolling disc design allows the plow to work effectively where moldboard plows would suffer constant damage. Discs can deflect around stones rather than catching them .
3. Heavy Crop Residue
After harvesting high-residue crops like corn, sunflowers, or cotton, the 1LY-3 chops and incorporates stubble effectively, preparing the seedbed for the next season.
4. Dry and Hard Soils
In dry conditions where soil is hard and crusted, the disc's rolling cut provides better penetration than fixed-share plows.
5. Virgin Land Reclamation
For bringing new land into production—whether pasture, scrubland, or previously uncultivated ground—the 1LY-3 handles roots and vegetation effectively .
Conclusion
The 1LY-3 Fish Disc Plow is a specialized but essential tool for farmers facing difficult tillage conditions. Perfectly matched to 60hp tractors, it offers an effective 900mm working width, deep tillage down to 300mm, and the rugged performance of 3 large 660mm discs. At 400kg, it is robustly constructed to handle overgrown, stony, or high-residue fields with minimal maintenance. For farmers who struggle with conventional plows, the 1LY-3 delivers the durability and clog-free performance needed to tame the toughest ground.
